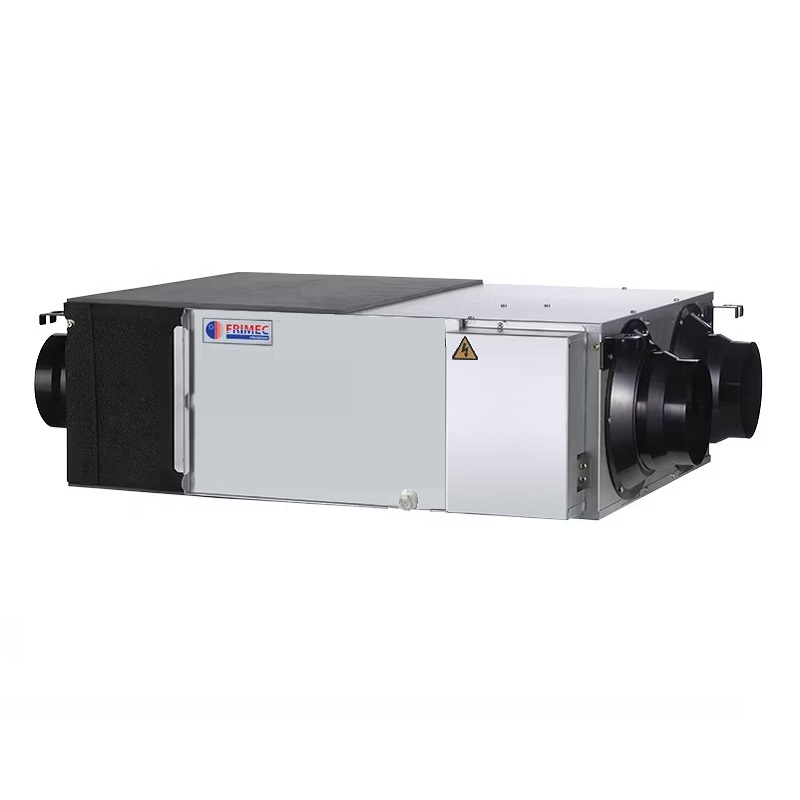

Frimec 1.5DMTHA Heat Recovery Unit, Flow Rate 105 m³/h

Frimec 1.5DMTHA Heat Recovery Unit, Flow Rate 105 m³/h

Frimec RCF horizontal heat recovery unit with two filters (one pre-filter + F9 or F7 depending on the model) on the intake side. This horizontal version offers a flow rate of 650 to 3,400 m³/h. These heat recovery units, available in five different sizes, are suitable for heat recovery in public spaces such as cafes, restaurants, and small and medium-sized establishments.

Operating status memory
Control and automatic bypass included
Weekly programming
Fans with DC motors
Heat recovery DC motor FWM BW: 1,000 KB
Display with temperature visualization
Dirty filter pressure switch with warning signal

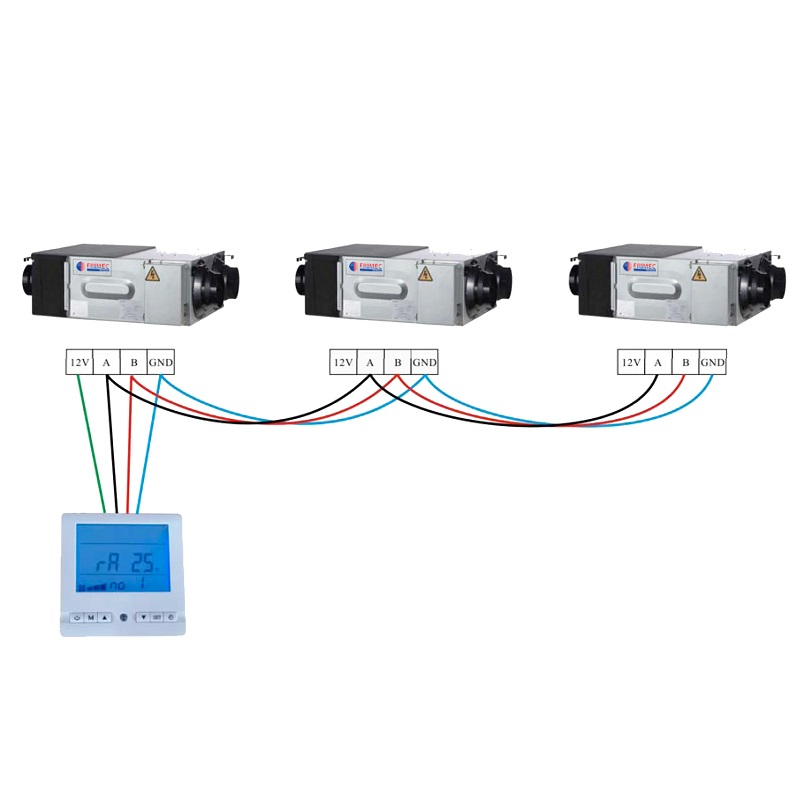

Centralized control of heat recovery units
Centralized control LH13001
Control of up to 16 units
Group or individual control
Wi-Fi (optional)

Maximum flow rate: 220 m3/h
Nominal flow rate: 150 m3/h
Available pressure: 0 - 70 PA
Thermal efficiency/75%
Cooling enthalpy efficiency: 63%
Heating enthalpy efficiency: 60%
Noise level: 32 dBA
Power supply: 220 / 1 / 50 V/F/Hz
Speed ​​control: DC motor, 10
Power consumption: 24 W
Power cables: 3 x 1.5 mm²

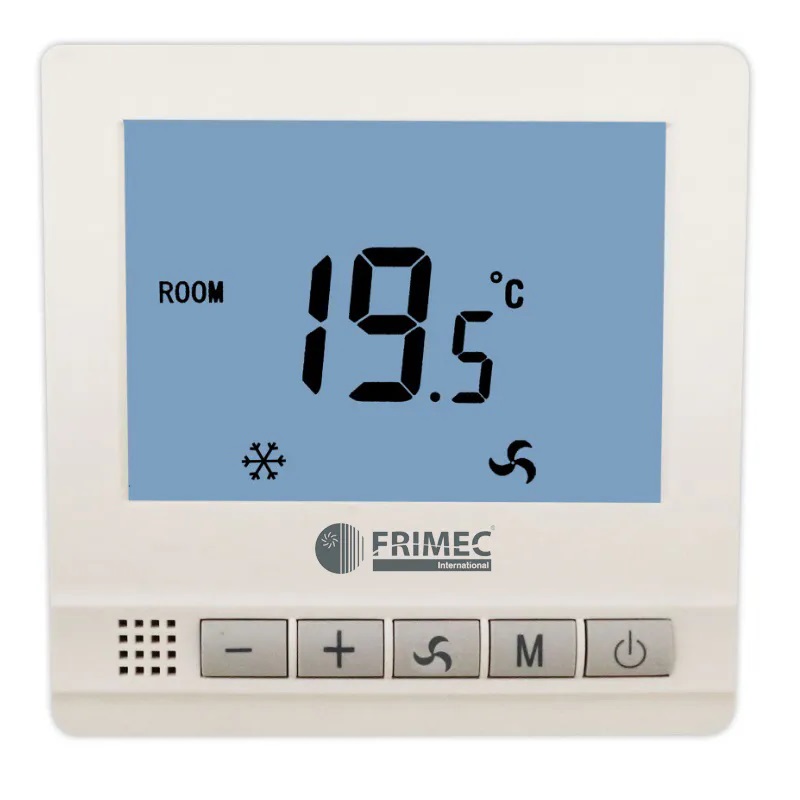

Control unit: Wired control (7-day programming, clock)
Filters included: Pre-filter + F9
Communication: BMS (Modbus RS485)
Dimensions
Inlet dimensions (height x width): Ø150 mm
Height: 264 mm
Width: 580 mm
Depth: 736 mm
Weight: 25 kg
