Floor support for Magister cube S41 air conditioning unit, 2 meter module

Floor support for Magister cube S41 air conditioning unit, 2 meter module

Composed of a galvanized steel frame mounted on plastic and fiberglass feet incorporating anti-vibration pads in bituminous elastomer, also available for pipes and ducts bi-modular hot frame modular structure, modular quick to install series of feet with support in anti-vibration rubber

Fixed, adjustable and adaptable when necessary, each foot can be easily removed to carry out floor repairs plastic safety caps for closing profiles.

Magister cube is a medium and ground crane external unit support system

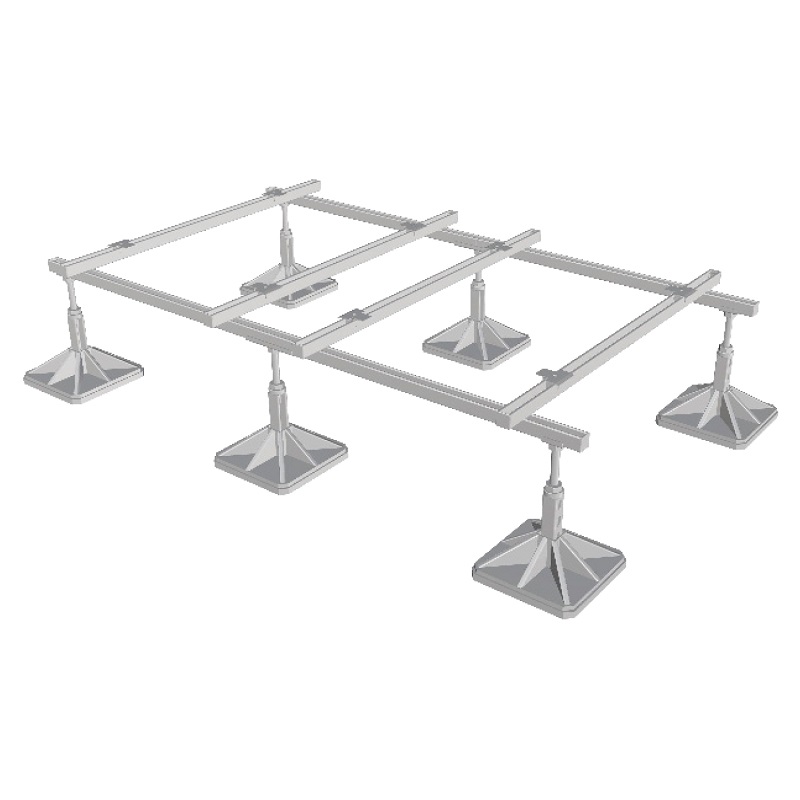

Made up of a frame made of hot-dip galvanized metal profiles with a square section

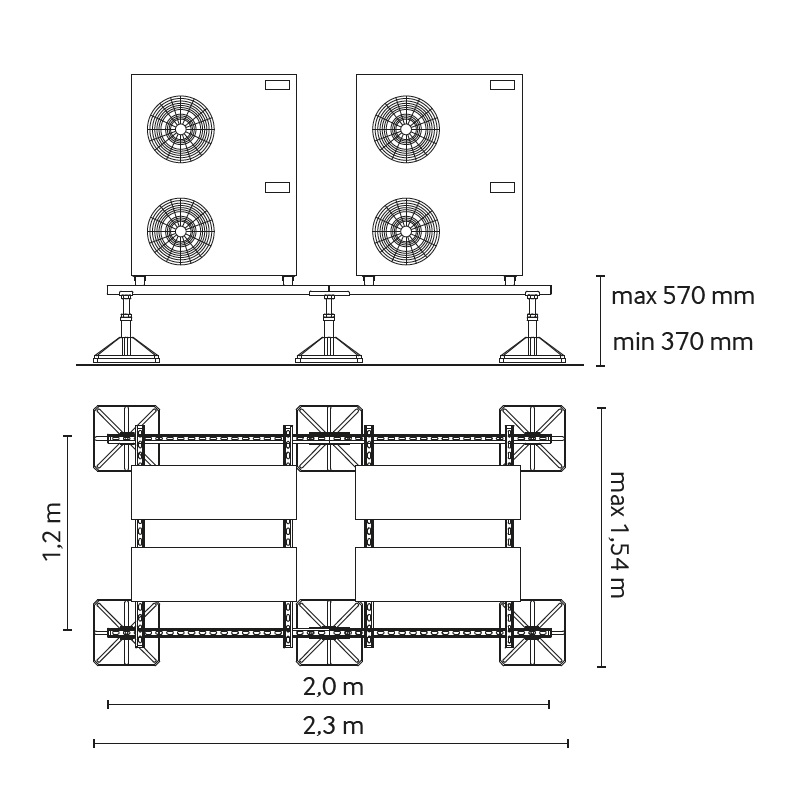

It is available in standard versions of 1 meter, 2 meters and 3 meters
Thanks to the special connection plate it is possible to compose and modulate the standard system
It is equipped with adjustable support feet with anti-vibration rubber for support

Advantage
Quick to install
Adaptable to all units on the market
Reduces vibrations transmitted by external units to the support
Height adjustable
Possibility of composing and extending the system without length limits using pla
No need for fixing to the floor or ceiling, eliminating any risk of infiltration
Feet can be removed independently to perform any intervention

System Components
2 bars of 2 meters, section 41x41mm
4 crossbars of 1.2
meters, section 41×41 mm
6 feet with anti-vibration rubber 300×300 mm
1 complete kit with fixing and closing cap screws
2 sets of 4 pieces of pliers
