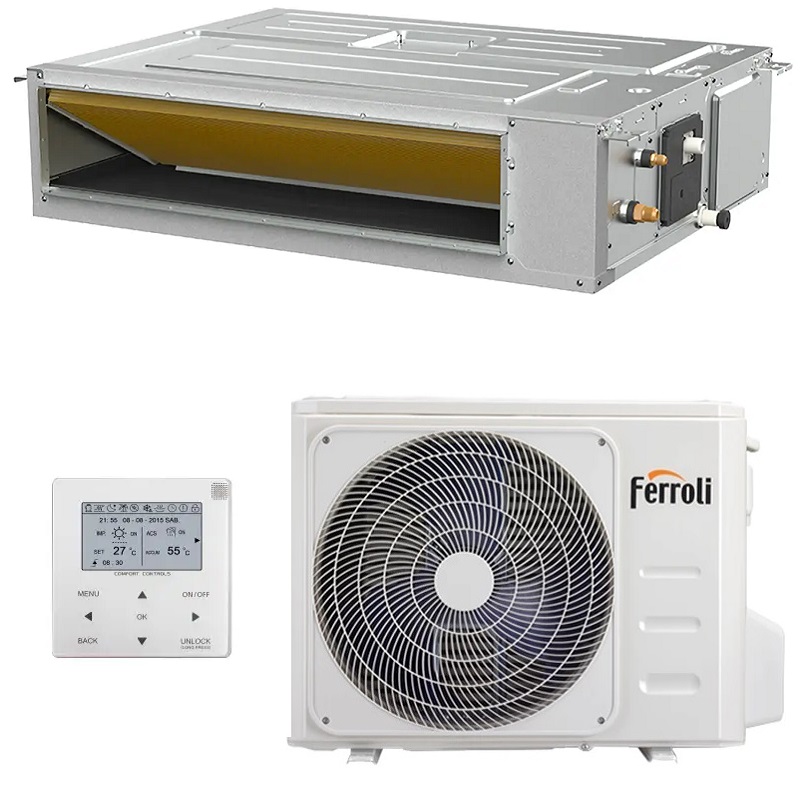

Ferroli GIADA C36 ducted air conditioner, 10.5 kW

Ferroli GIADA C36 ducted air conditioner, 10.5 kW

Ferroli GIADA Inverter DC (1x1) ducted air conditioner with ecological R32 refrigerant, high-performance equipment (A++/A+++ rating), with WiFi connectivity and reduced height in the indoor ducted unit
Equipment with DC inverter technology.

New DC inverter compressor, Allows wide modulation and low starting intensity.

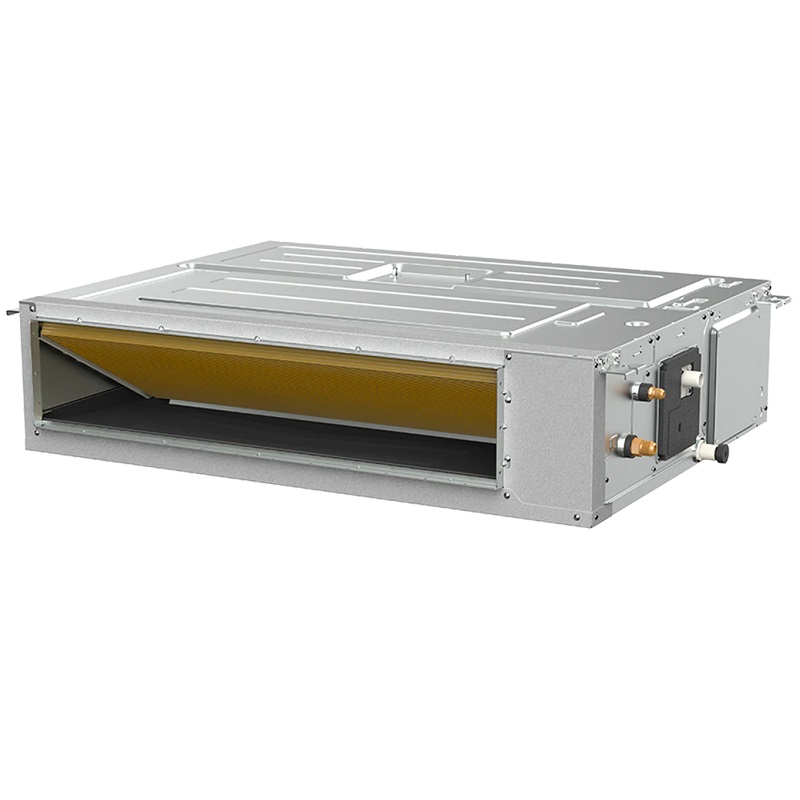

Indoor unit with small ducts (only 245 mm)
Outdoor unit with reduced dimensions to facilitate its architectural integration.
GOLDEN FIN protection on external coil and internal coil.
Available static pressure up to 160 Pa (depending on model)
Automatic adjustment of available static pressure
DC inverter split heat pump (1x1) with ecological refrigerant R32
High-performance equipment (A++/A+++ rating), with Wifi connectivity, and reduced height in the indoor ducted unit
Compatible with: Download the Ferroli AC Split app, ROHS restriction of hazardous substances, in accordance with Directive 2011/65/EU, restricts the use of hazardous substances in electronic devices, GOLD battery Static pressure, up to 160 Pa 160 Pa 30 Pa up to 160 Pa, with automatic adjustment

Indoor and outdoor batteries with GOLD protection, automatic adjustment of static pressure.
High cooling distances (25-30 m for small models and up to 75 m for larger models)
WiFi connection available, possibility to control the equipment via APP
Reduced noise level of the outdoor unit and indoor unit
Possibility to supply outside air to the indoor unit
Possibility of double suction in the indoor unit (rear or lower)

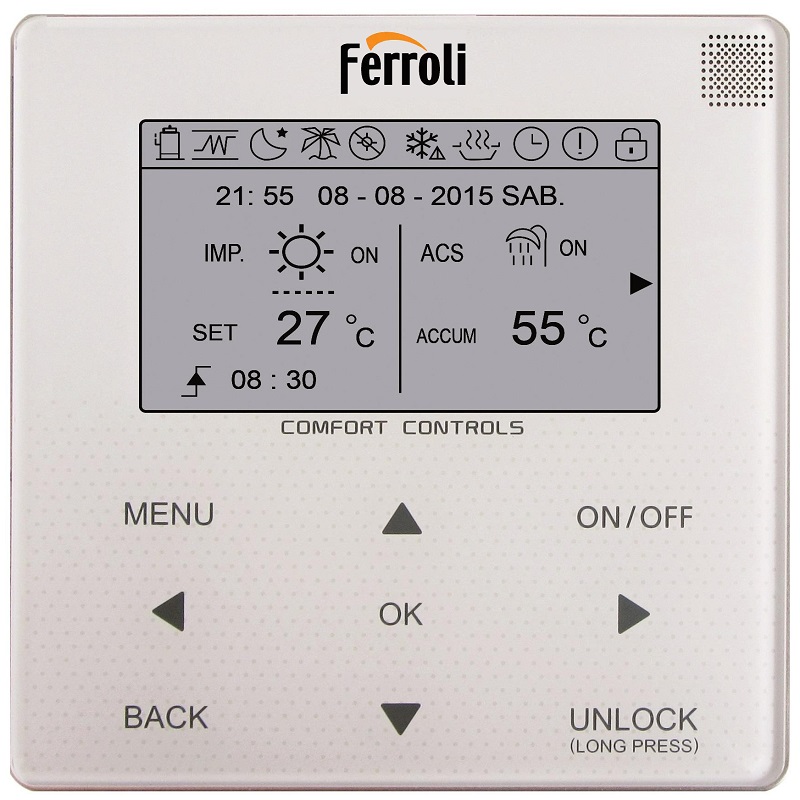

Wall remote control included as standard
Condensate drain pump available as an accessory
Possibility of vertical installation (from model 18)
Simple maintenance (easy change of fan motor, pump and air filters)

Power: 10.5 kw
Air flow of the indoor unit: 1700/1400/1100 m3/h
Power consumption: 400 W
Speed ​​(high/medium/low): 1120/1000/880 rpm
Sound power: indoor unit: 62 dB(A)
Sound pressure of outdoor unit: 65 dB(A)
Sound power of outdoor unit: 70 dB(A)
Refrigerant R32
GWP 675kg/CO2
Refrigerant liquid/gas pipe 9.52 mm (3/8 in) / 15.9 mm (5/8 in)
Maximum length of refrigerant pipe /min. 75 / 3 meters
Maximum slope between outdoor unit and indoor unit: 1 to 30 meters
Indoor unit gross/net weight: 44.4/38.4 kg
Indoor unit packaging dimensions: Height/width/depth: 304x1425x860 mm
Indoor unit dimensions: Height/width/depth: 245 x 1200 x 750 mm
Outdoor unit gross/net weight: 71.5/66.9 kg
Outdoor unit dimensions height/width/depth: 810 x 946 x 410 mm
