Ferroli GIADA C12 ducted air conditioner, 3.5 kW

Ferroli GIADA C12 ducted air conditioner, 3.5 kW

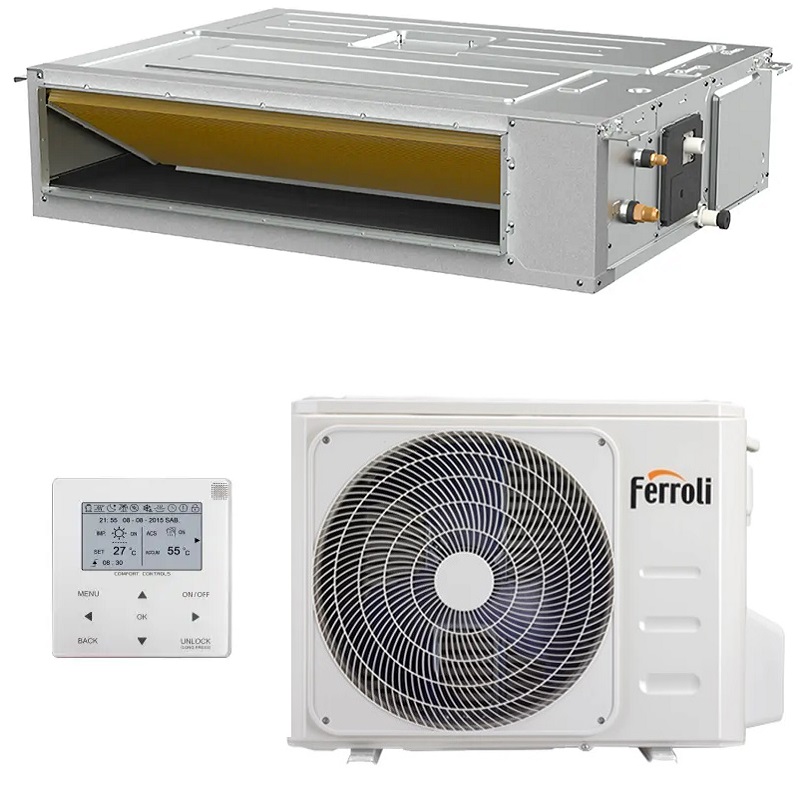

Ferroli GIADA Inverter DC (1x1) ducted air conditioner with ecological R32 refrigerant, high-performance equipment (A++/A+++ rating), with WiFi connectivity and reduced height in the indoor ducted unit
Equipment with DC inverter technology.

New DC inverter compressor, Allows wide modulation and low starting intensity.

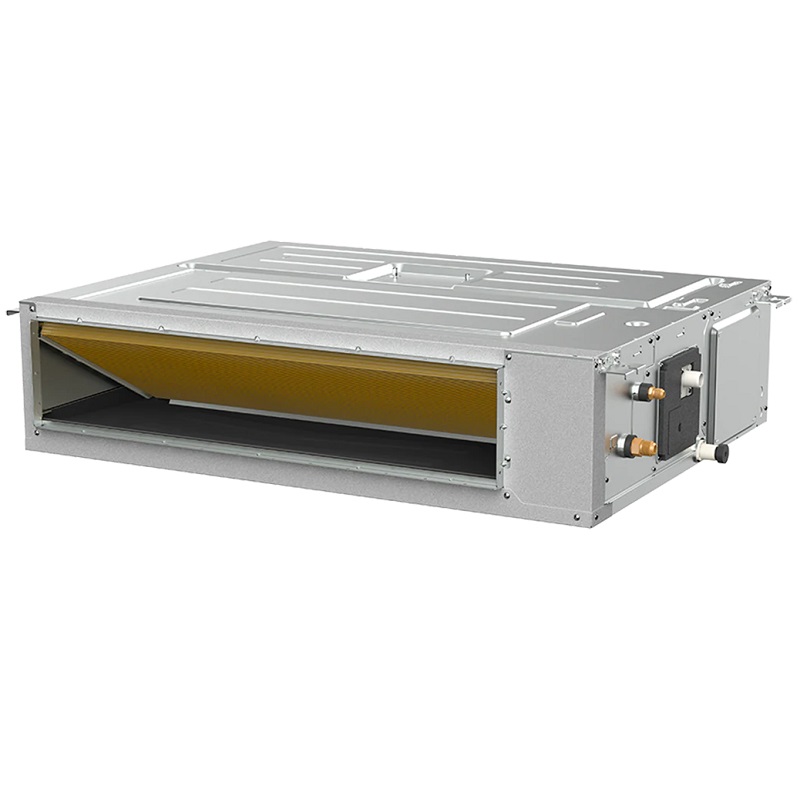

Indoor unit with small ducts (only 200 mm).

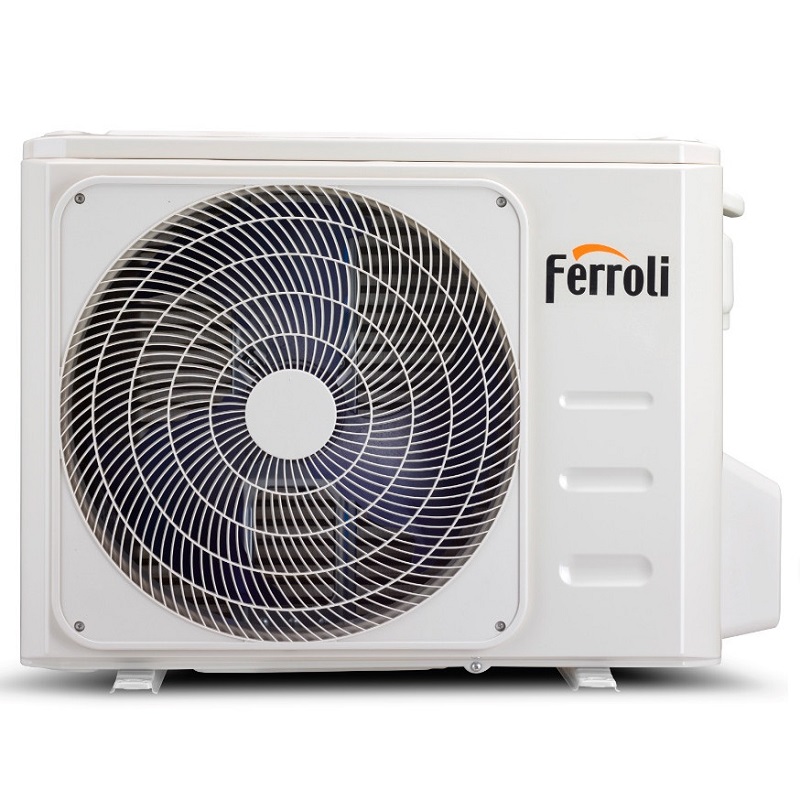

Outdoor unit with reduced dimensions to facilitate its architectural integration.
GOLDEN FIN protection on external coil and internal coil.
Available static pressure up to 160 Pa (depending on model)
Automatic adjustment of available static pressure
DC inverter split heat pump (1x1) with ecological refrigerant R32
High-performance equipment (A++/A+++ rating), with Wifi connectivity, and reduced height in the indoor ducted unit
Compatible with: Download the Ferroli AC Split app, ROHS restriction of hazardous substances, in accordance with Directive 2011/65/EU, restricts the use of hazardous substances in electronic devices, GOLD battery Static pressure, up to 160 Pa 160 Pa 30 Pa up to 160 Pa, with automatic adjustment

Indoor and outdoor batteries with GOLD protection, automatic adjustment of static pressure.
High cooling distances (25-30 m for small models and up to 75 m for larger models)
WiFi connection available, possibility to control the equipment via APP
Reduced noise level of the outdoor unit and indoor unit
Possibility to supply outside air to the indoor unit
Possibility of double suction in the indoor unit (rear or lower)

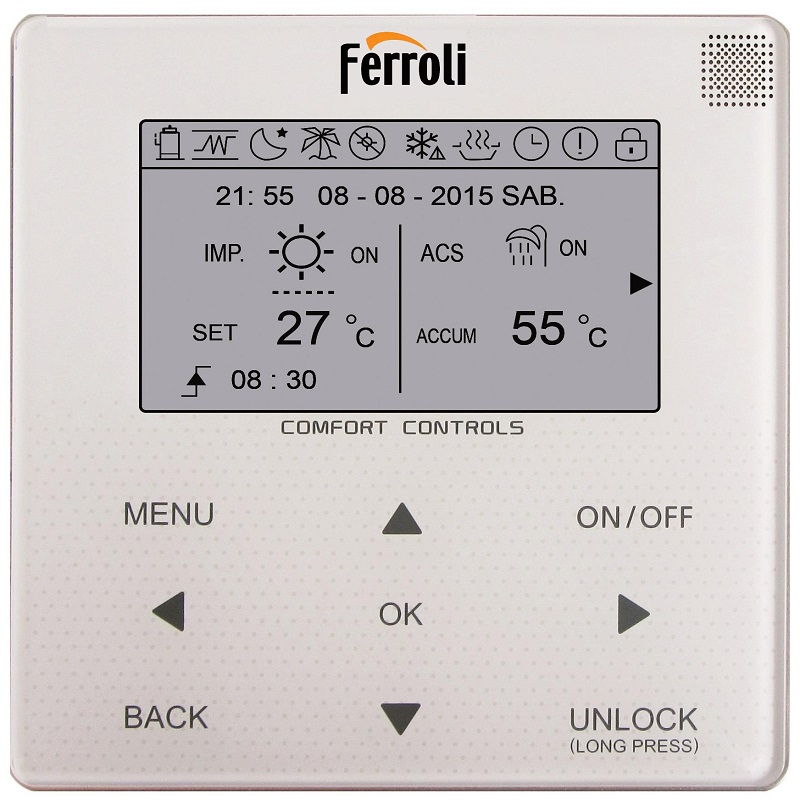

Wall remote control included as standard
Condensate drain pump available as an accessory
Possibility of vertical installation (from model 18)
Simple maintenance (easy change of fan motor, pump and air filters)

Power: 3.5 kW (0.53-3.91)
Energy class: A++ for cooling, A+ for heating
Internal air flow: 900 m³/h / 1200 m³/h / 1500 m³/h
Maximum static pressure: 160Pa
Internal sound pressure: 35dB / 37dB / 39dB
Outdoor air flow: 3800m³/h
Outdoor sound pressure: 63dB
Power supply: 220-240V / single phase / 50Hz
Power wiring: internal with communication; External 3x2.5 mm²
Communication wiring: 4x1 mm²
Refrigeration pipes: Ø3/8” (liquid) / Ø5/8” (gas)
Refrigerant gas: R-32, factory charge 1.8 kg, additional charge 0.024 kg
Drain pipe: Ø25 mm (internal)
Maximum pipe length: 50 m
Maximum height difference: 25 m
Indoor unit dimensions: H.200 x W.700 x D.450 mm
Indoor unit weight: 38.4 kg
Outside unit dimensions: W. 555 x 765 x 303 mm
Gross weight 26 kg
Net weight: 29 kg
