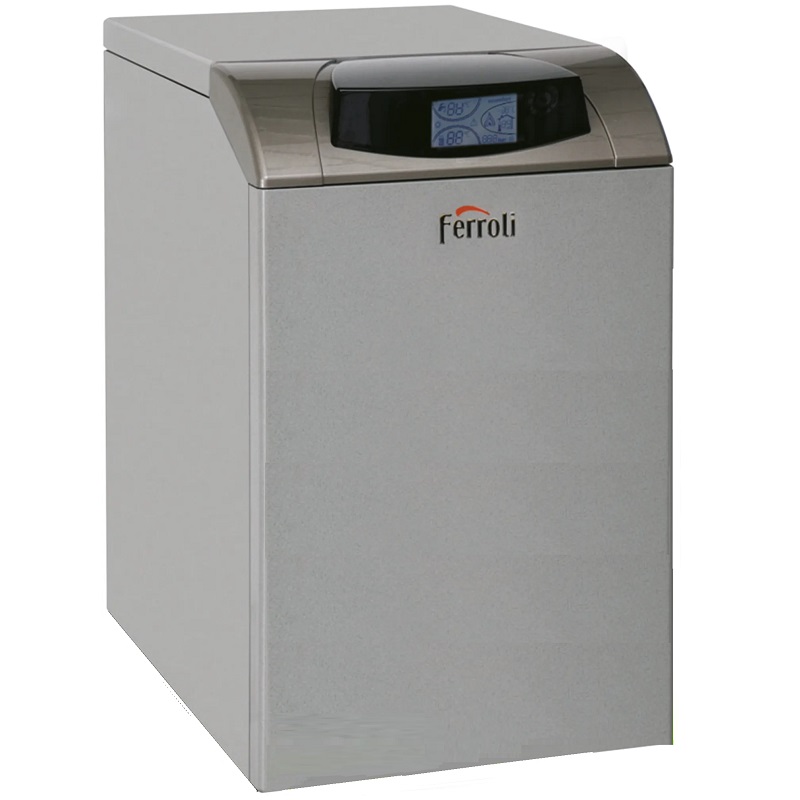

Ferroli Atlas 42 D eco UNIT digital steel diesel boiler
Class B according to ErP.
Integrated burner.
Pump and expansion tank incorporated (except model 56).
Easy connection to the interaccumulator.
Wide range of optional tanks.
Rated useful power: 37 kW
Rated useful power: 31,820 kcal/h
Useful performance (on P.C.I) 100% Pot. Maximum: 94.04%
Useful performance (on P.C.I) 30% Pot. Maximum: 97.45%
Energy classification Heating/DHW: B/B
ACS production with T 30ºC: 17.6 l/min
Volume of the heating expansion tank: 10 liters
Connections
Installation flow: 3/4" Ø
Installation return: 3/4" Ø
Boiler drain: 1/2" Ø
Burnt gas outlet: Ø 130 mm
Cold water inlet: 1/2" Ø
Hot water outlet: 1/2" Ø
Weight: 200 kg
Dimensions: 850 x 500 x 732 mm
