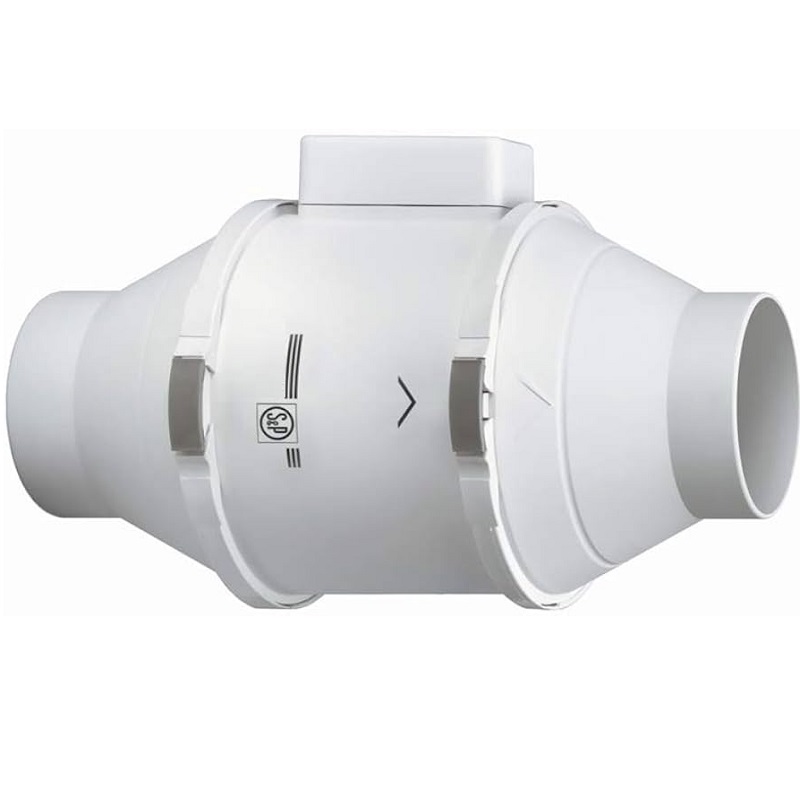

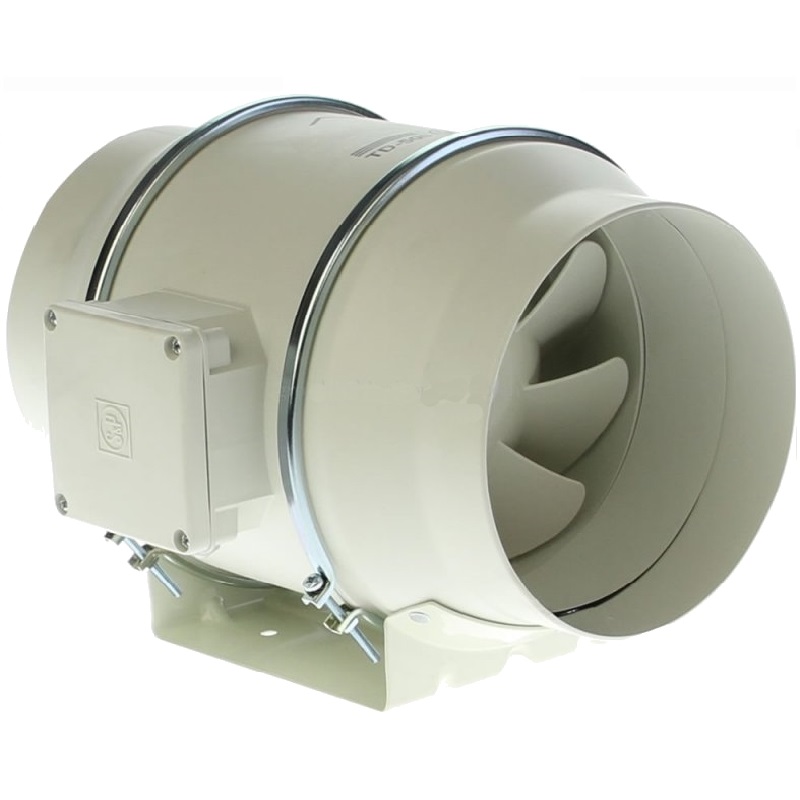

Extractor Soler&Palau TD-800/200N MIXVENT
Compact in-line fan with adjustable speed, easily removable motor housing without dismantling the ducts, class B, IP44, with thermal protection, single-phase power supply 230 V - 50 Hz (models from 160 to 350), 60 Hz models from 500 to 2000), equipped with an adjustable timer from 1 to 30 minutes and a 1-speed motor, not suitable for speed control
Technical characteristics
Plastic material
Model: TD-800/200N
Technical characteristics
Low profile
Easy assembly
Removable motor body for repair or cleaning
Flexible placement
Speed: 1980/2370 rpm
Maximum power: 112/121 W
Consumption: 0.50/0.74 A
Flow rate: 840/1000 m³/h
Maximum operating temperature: 60 C
Noise level: 41/43 dB(A)
Duct (diameter): 200 mm or 8 inches
Voltage: 220 V 60 Hz
Weight: 4.9 kg
