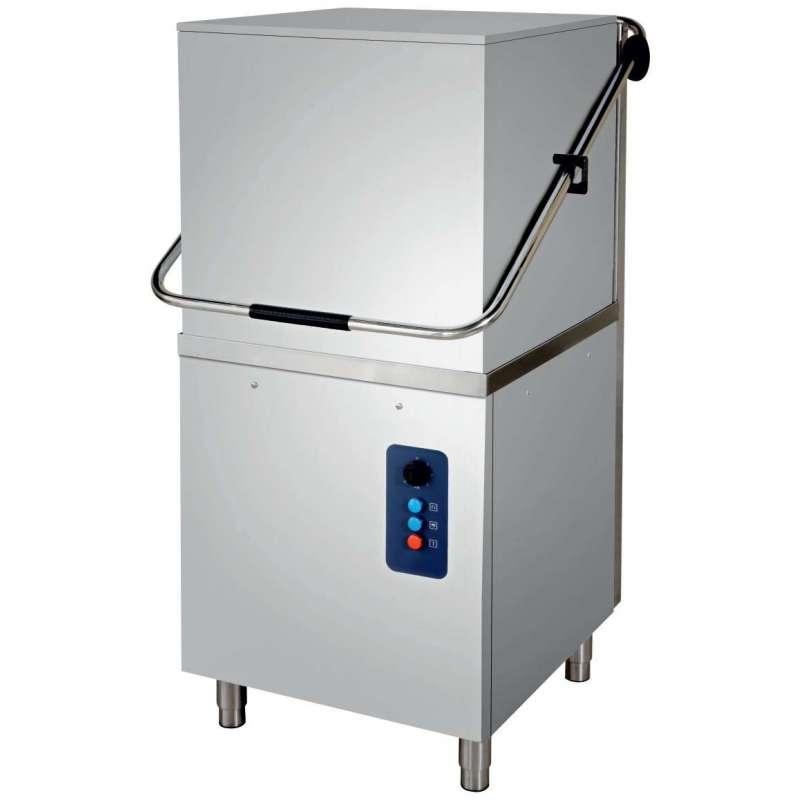

Edenox DCG-800 industrial glass washer

Edenox DCG-800 industrial glass washer

Power socket (single-phase or three-phase), you will easily know this by looking at the plate with the characteristics of the industrial dishwasher itself, make sure that the socket you have has sufficient voltage.
Water intake you will need a pressure current between 2 and 6 kg per cm2, this pressure is the most common but if for some reason you do not have it then you will need to install a pressure pump , basically you will have to do this because if you do not have the minimum, your dishwasher will not be able to clean or rinse as it should.

To be able to install your dishwasher you will need a water inlet with a tap and a "male" outlet with a 3/4 thread, the drain, just make sure it is below the level of the machine, if this is not the case, then choose to install it, drain pump with a minimum diameter of 45 mm.
Rinse aid dispenser, all dishwashers are equipped with this as standard.

Water consumption: 3l / rinse, washing tank power: 4.5 kW. Capacity: 45 liters
Rinsing boiler power: 6 kW. Capacity: 7l.
Windshield washer pump power: 0.59 kW / 0.79 HP.

1 plate basket with CTE-11 tips.
1 basket of CPE-18 glasses.
2 CUE-13 cutlery bowls.
Technical specifications

Model DCG-800
Production: 800 plates/hour
Useful height: 420 mm
Electric power: 11.1 kW
Voltage: 230-400 - 50 Hz - Three-phase
Dimensions (width/depth/height): 675 x 675 x 1440 mm
