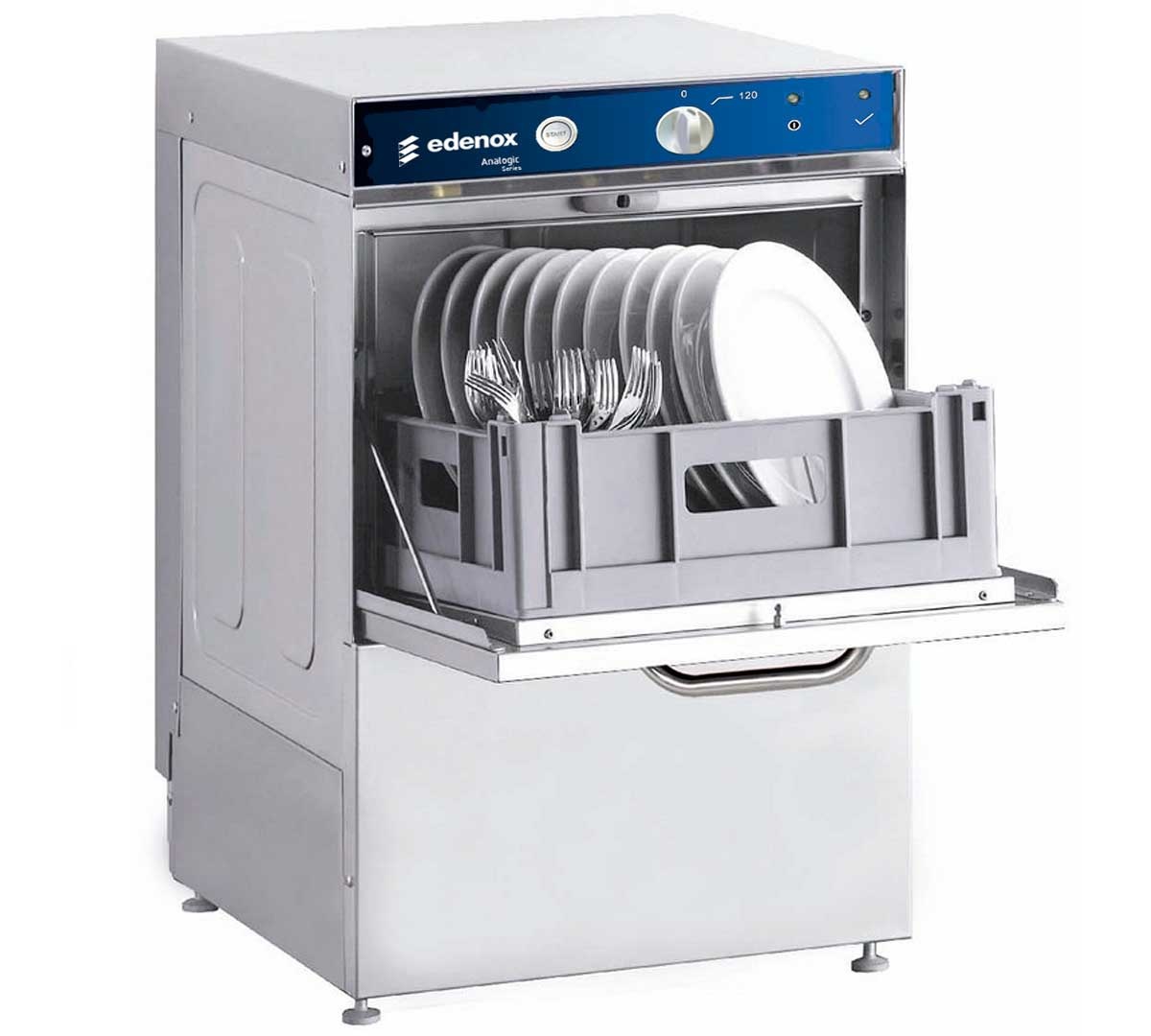

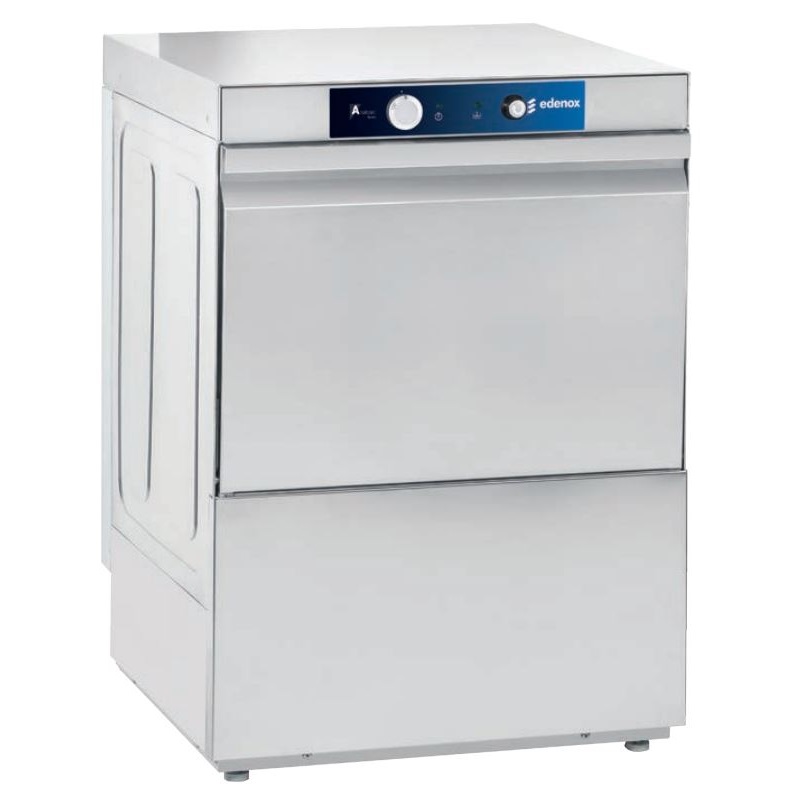

Edenox AV-1200 industrial glass washer

Edenox AV-1200 industrial glass washer

Edenox AV-1200 glass washer with 35x35 basket, very compact glass washer but with high load capacity. The washing and rinsing arms are rotatable, rinse aid dispenser included.

Electromechanical programmer.
1 wash cycle of 120”.
Its production is 900 pieces per hour.
Incorporates a security microphone when opening the door.
The power of the washing tank is 2 kW.
The capacity of the wash tank is 11 liters.
Rinsing boiler power: 2.4 kW.
Capacity: 5 liters
Windshield washer pump power: 0.26 kW / 0.35 HP.
Rinse consumption is 2 liters.
Equipped with a non-return valve.
Safety thermostat.
Includes rinse aid dispenser.
Washing temperature regulated at 60°C and rinsing temperature at 85°C.
Voltage 230 V / 1+N+T.
Includes: 2 baskets of 350 x 350 mm and 1 cutlery cup.

Technical specifications
Production of 900 pieces/hour.
2 baskets of 35 x 35 cm + 1 cutlery cup.
Its total power is 2.7 kW.
Consume 2 liters of water per rinse.
This model is available with a drain pump.

Main characteristics
Edenox Analogic AV 1200 glasswashers
Power 2.7 kW
Voltage 230V
Cycle time(s) 120 "
Drain pump No
Basket dimensions 350 x 350 mm
Usable height 220 mm
Width 430 mm
Depth 480 mm
Height 655 mm
