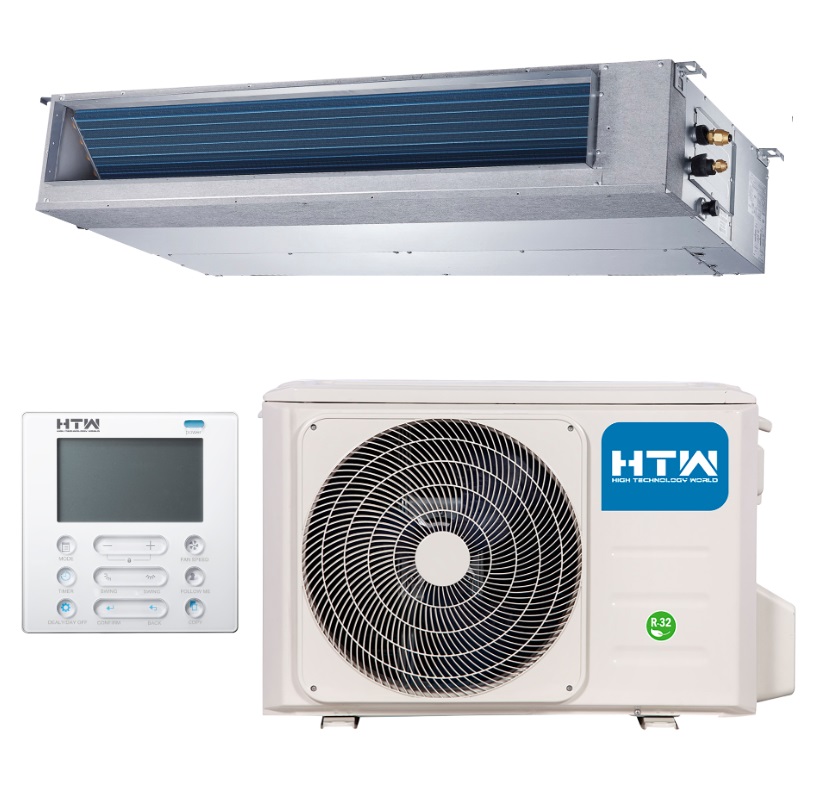

DT3-105ADM2R32-WF ducted air conditioner, 10.5 kW
Efficiency, A++ rating for cooling and A+ for heating in hot areas.
Optional Wi-Fi
Golden Fin coating is applied to the coils of the indoor and outdoor units, providing protection against corrosion in saline environments.

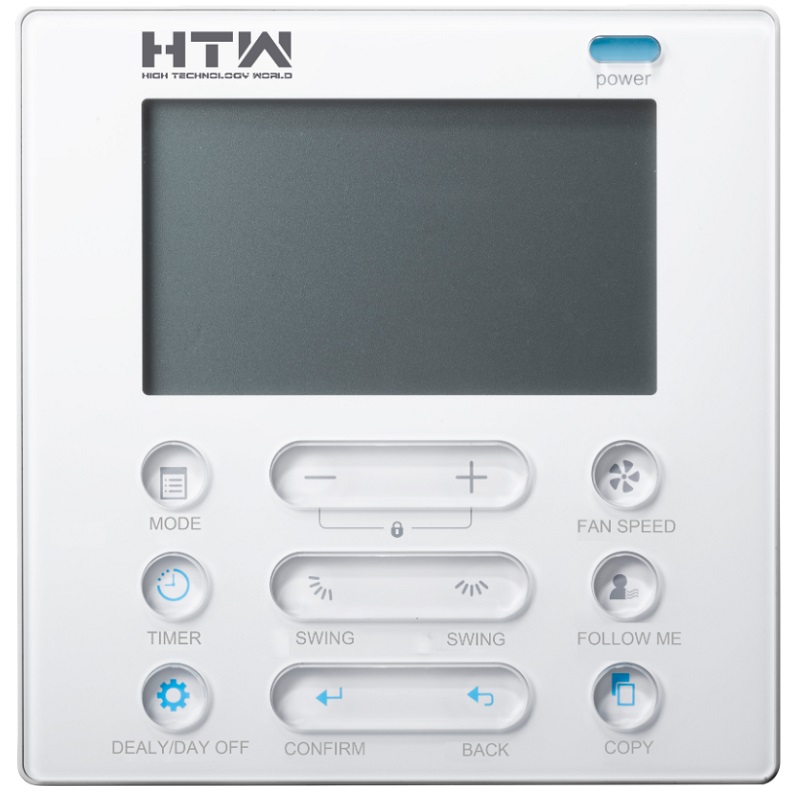

Wired control includes a wired controller with weekly programming.
Long installation length, increasing the length to 75 m and the elevation difference to 30 m for higher power outputs.
Slim design, reducing duct height to accommodate installations with limited space.
ON/OFF and alarm contacts, they can be used to install door or window contacts, hotel card readers, or to connect fire alarms.
Cooling capacity: 9030 Fridge/h
Heating capacity: 10000 Kcal/h
Power: 10.5 kW
Wi-Fi: Optional
Energy efficiency: A++
SEER: 6.2
SCOP: 4
Refrigerant gas: R-32
Supply voltage: 230 V
Indoor noise level: (dB) 42
Refrigeration connection diameter: 3/8" - 5/8"
Indoor unit dimensions (H.x.W.x.D.): 1360x249x774 mm
Outdoor unit dimensions (H.x.W.x.D.): 946x810x410 mm
