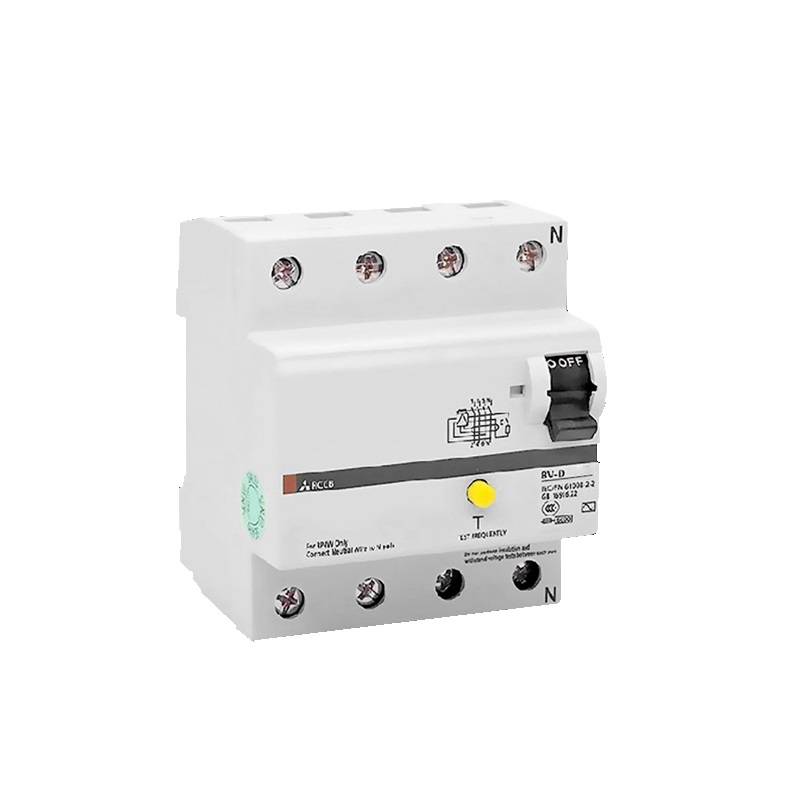

Differential BV-D 4P 63A 30MA N Type AC. high immunity

Write a review
MITSUBISHI ELECTRIC
172.00 €
Hemmera 1 Ask a question
HE-CBL-033
In stock
+ −

Differential BV-D 4P 63A 30MA N Type AC. high immunity

No. of poles [P] 2(1+N)∗1 4(3+N)∗1 ∗3
Rated current [A]
At room temperature 30: 25, 40, 63
Rated voltage [VAC] 230 230/400
30,300 0.04
Rated current sensitivity I∆n
[mA] Max. time 5I∆n [s]
Pulse Current Sensitivity Type AC
Rated conditional short-circuit current [kA] 6
Dimensions
[mm] A 36 72 B 85 C 44 CA 70
Mass [kg] 0.2 0.35
500(In25.40A), 630(In63A) 6
500(En25.40A), 630(En63A)
Rated making and breaking capacity Im [A]
Rated conditional short-circuit current Inc [kA]
Rated residual making and breaking capacity I∆m [A]
Rated conditional residual short-circuit current I∆c [kA] 6
Number of operating cycles
Powerless 8000
With 8,000 current
Type of overcurrent release –
IEC35mm rail mounting
Applicable wire size 1 to 25 mm2
Solderless terminal connection
Based on IEC61008-2-2 standard
CE marking EN61008-2-2: Self-declaration
CCC GB16916.22

Brand Hemmera:
MITSUBISHI ELECTRIC
