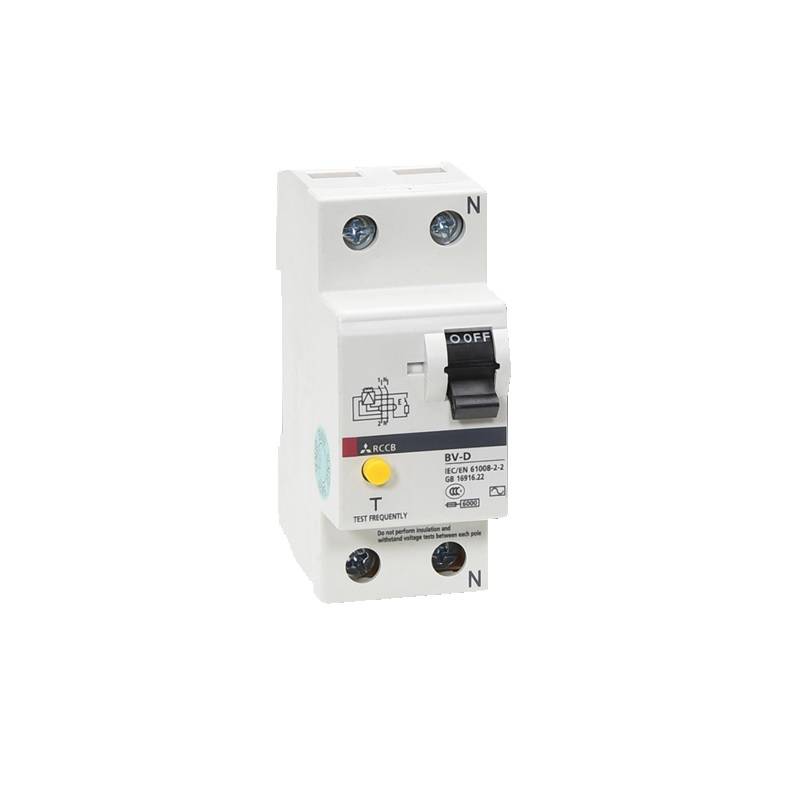

Differential BV-D 2P 40A 30MA N AC type. high immunity
Rated current [A]
at room temperature 30: 25, 40, 63
Rated voltage [VAC] 230 230/400 30, 300 0.04
Rated current sensitivity I∆n [mA] Max. time 5In [s]
Pulse Current Sensitivity Type AC
Rated conditional short-circuit current [kA] 6
Dimensions [mm] A 36 72 B 85 C 44 CA 70
Weight [kg] 0.2 0.35 500(In 25.40A), 630(In63A) 6,500(In 25.40A), 630(In63A)
Rated making and breaking capacity Im [A]
Rated conditional short-circuit current Inc [kA]
Rated residual making and breaking capacity m [A]
Rated conditional residual short-circuit current [kA] 6
Number of operating cycles without current 8000
With 8,000 current
Overcurrent release type
IEC35mm rail mounting
Applicable wire size 1 to 25 mm2
Solderless terminal connection
Based on IEC61008-2-2 standard
CE marking EN61008-2-2: CCC GB16916.22 self-declaration
