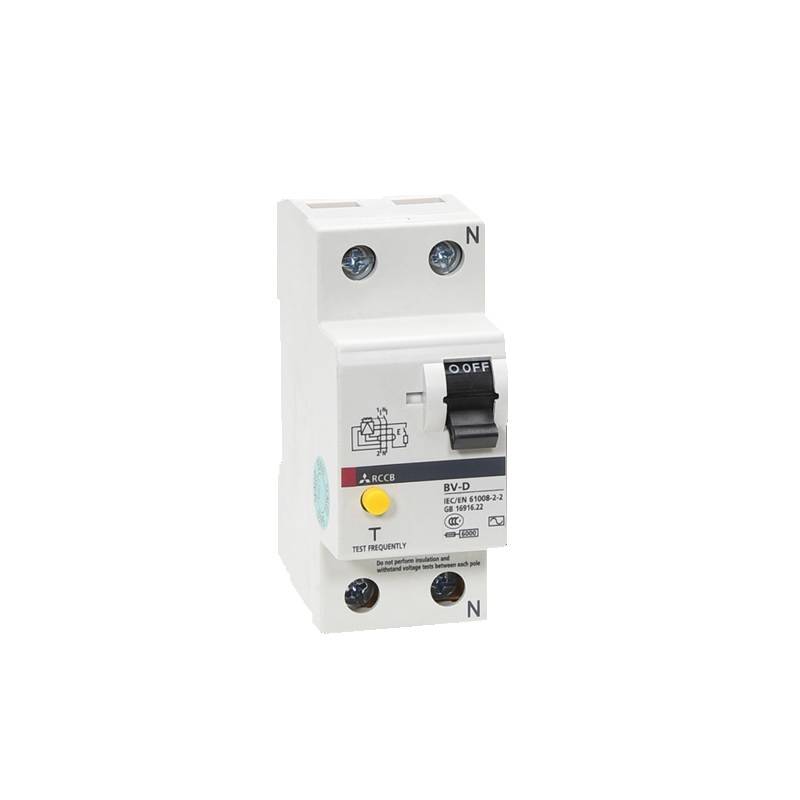

Differential BV-D 2P 40A 300MA N AC type. high immunity

Write a review
MITSUBISHI ELECTRIC
49.99 €
Hemmera 1 Ask a question
HE-CBL-037
In stock
+ −

Differential BV-D 2P 40A 300MA N AC type. high immunity

No. of poles [P] 2(1+N)∗1 4(3+N)∗1 ∗3
Rated current [A] at ambient temperature 30: 25, 40, 63
Rated voltage [VAC] 230 230/400 30, 300 0.04
Rated current sensitivity In [mA] Max. time 5In [s]
Pulse Current Sensitivity Type AC
Rated conditional short-circuit current [kA] 6
Dimensions [mm]
At 36 72 B85 C44 about 70
Mass [kg] 0.2 0.35
500(En25.40A), 630(En63A) 6500(En25.40A), 630(En63A)
Rated making and breaking capacity Im [A]
Rated conditional short-circuit current Inc [kA]
Rated residual making and breaking capacity I∆m [A]
Rated conditional residual short-circuit current I∆c [kA] 6
Number of operating cycles
Powerless 8000
With 8,000 current
Type of overcurrent release –
IEC35mm rail mounting
Applicable wire size 1 to 25 mm2
Solderless terminal connection
Based on IEC61008-2-2 standard
CE marking EN61008-2-2
CCC GB16916.22 self-declaration

Brand Hemmera:
MITSUBISHI ELECTRIC
