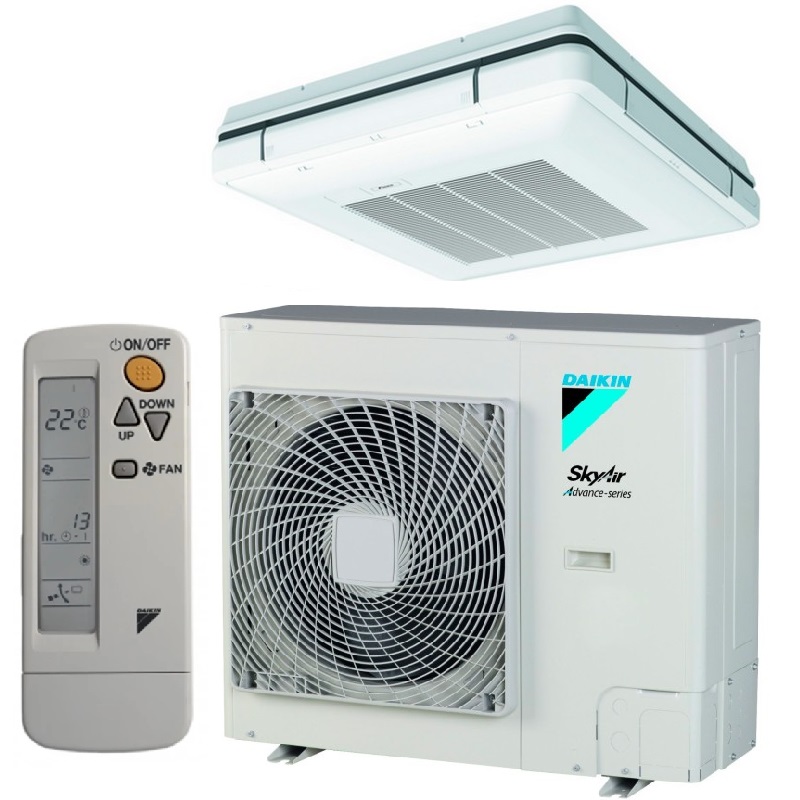

Daikin VISTA SKY UASG100A 10.0 kW cassette air conditioner
Sleek and stylish design to fit any interior design

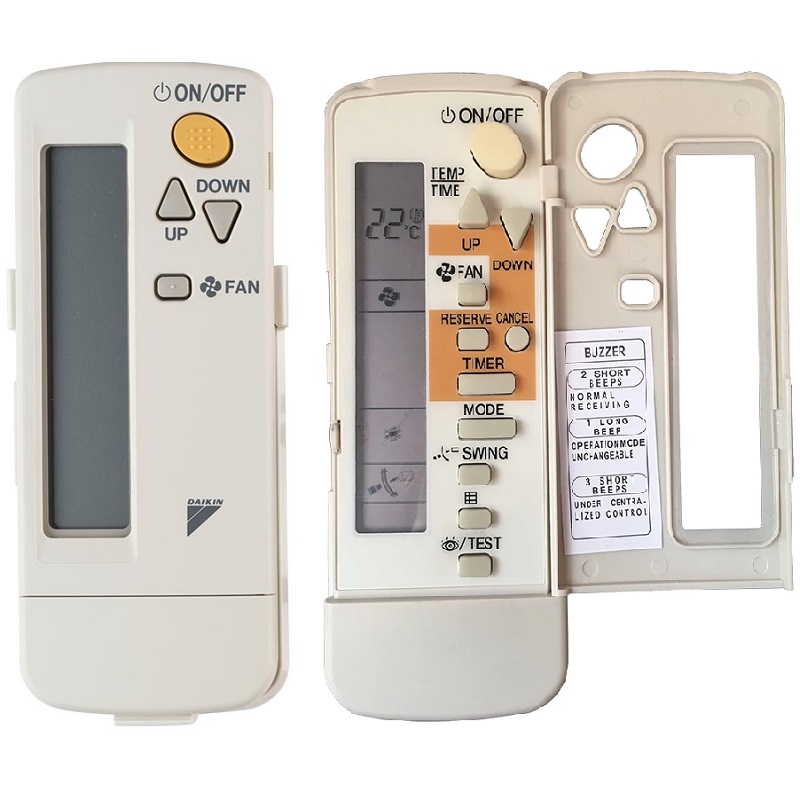

End user interface using symbols for intuitive control using touch buttons
Intuitive application to define and copy programs, adjust energy saving and monitoring functions for advanced users and technical managers and provide quick and easy commissioning for installers
Energy savings through key card and window contact integration, set point limitation and flexible reset function, whilst ensuring customer or tenant comfort.
Daikin ZUAG100A
Rated cooling capacity: 9.5 kW
Nominal refrigeration capacity: 8,170 refrigerations/h
Rated heating capacity: 10.8 kW
Rated heating capacity: 9,288 kcal/h
Liquid connections: mm ø 9.5 (3/8”)
Gas connections: mm ø 15.9 (5/8")
I/220V power supply
SEER / SCOP Cooling / Heating: 6.42/4.50
Ce efficiency label C. Cooling/Heating: A++/A+
Annual seasonal energy consumption kWh of refrigeration: 518
Annual seasonal energy consumption kWh Heating: 2,427

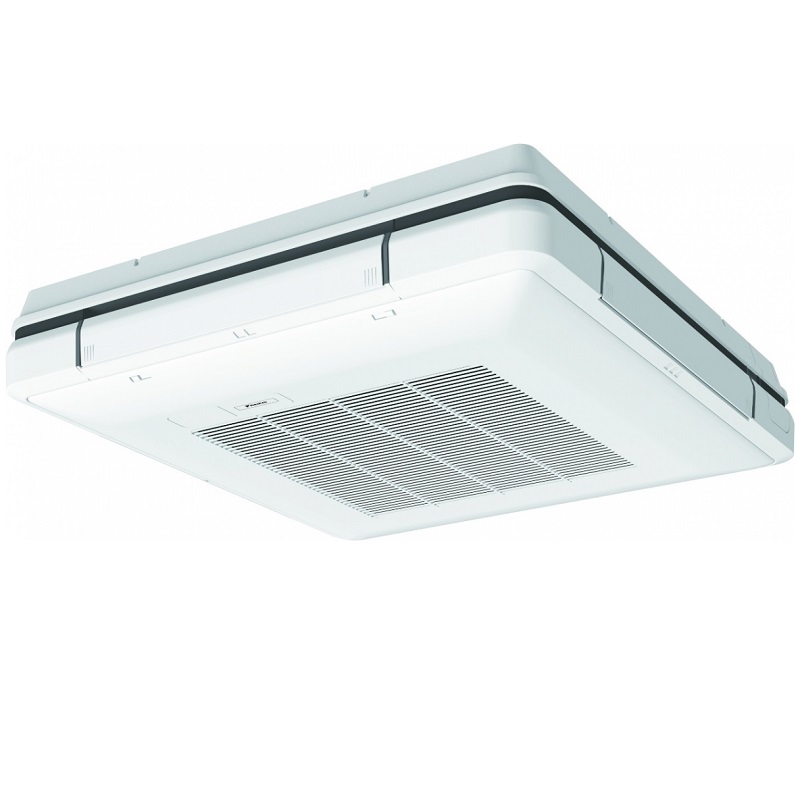

Indoor unit: FUA100A
Cooling air flow (A/B): 31/20 m³/min
Fan Speeds #: 3
Cooling sound pressure (A/B): 46 / 39 dBA
Sound power level: 64 dBA
Dimensions: L.198 x W.950 x D.950 mm
Weight: 26 kg

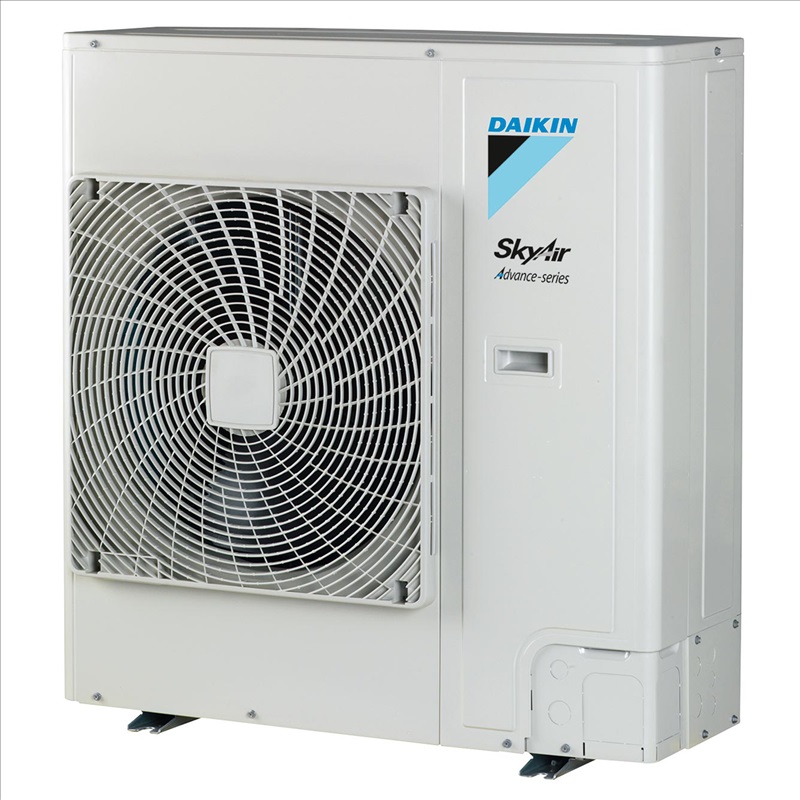

Outdoor unit: RZAG100NV1
Cooling air flow: 67 m³/min
Heating air flow: 82 m³/min
Compressor type SWING
Refrigerant R-32
Rated cooling sound pressure: 47 dBA
Nominal heating sound pressure: 50 dBA
Sound power level dBA: 66
Dimensions: L.870 x W.1.100 x D.460 mm
Weight: 85 kg
