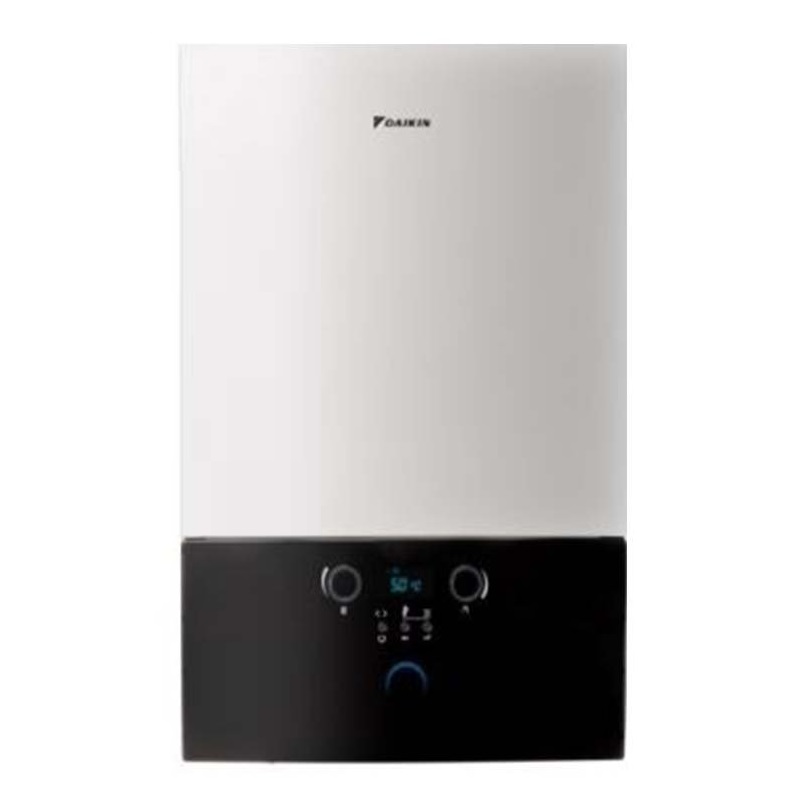

Daikin D2CND35SET Gas Nat/But Boiler

Daikin D2CND35SET Gas Nat/But Boiler

Total condensation technology that reaches up to 109% efficiency.

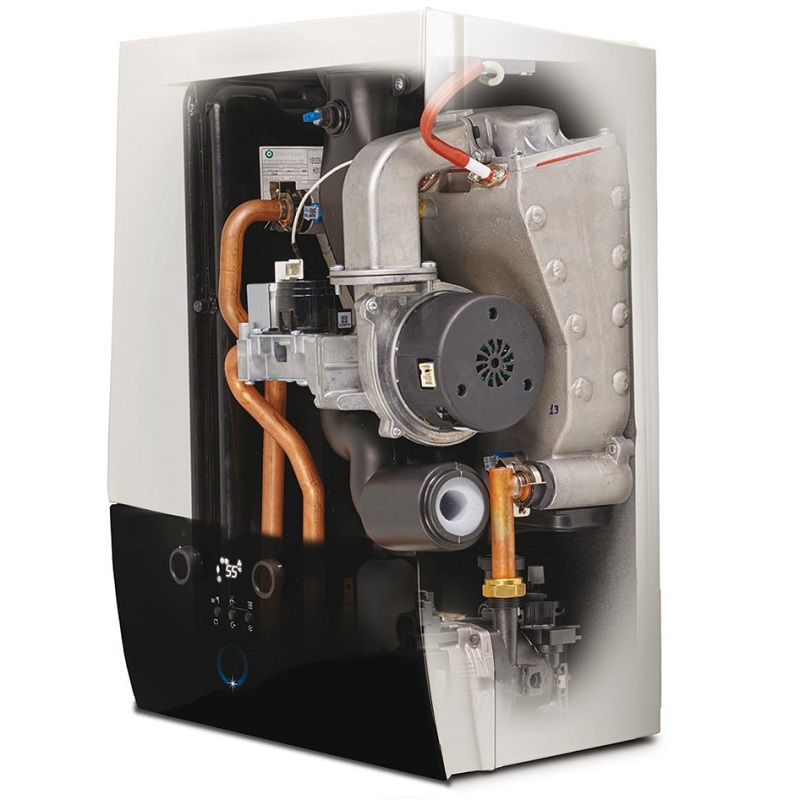

Premix Technology: incorporates a modulating fan to mix air and gas in exact proportions before reaching the burner, thus ensuring complete, clean and efficient combustion.
Modulation range 1:8. Continuous regulation of the burner power saves energy, the power is adapted according to the necessary heating load of the house from 5 to 35 kW.

Heat exchanger developed by Daikin: made of cast aluminium, it guarantees lightness and high resistance to corrosion. The asymmetrical design allows to minimize space and the design of the fins is optimized to reduce the pressure drop of the smoke circuit, thus minimizing the electrical consumption and the noise emission of the fans.
Lambda Gx Automatic Gas Adaptive System: regulates the correct combination of air and gas for efficient combustion, resulting in huge savings.

High-efficiency pump with frequency control compliant with EU/TR ERP LOT11: The exclusive hydraulic block, made of glass-fibre reinforced thermal polyamide, includes a very high-efficiency pump with speed regulation via the main electronics. It integrates a pressure sensor that provides the equipment with an electric pressure gauge.

Low noise level: With a sound power of 49 dB (A), the audible noise level near the appliance is similar to hearing a dishwasher running in an adjacent room, and at a sound pressure of 39 dB (A), the audible noise level at a distance of 1 metre, it resembles the quiet environment of a library.

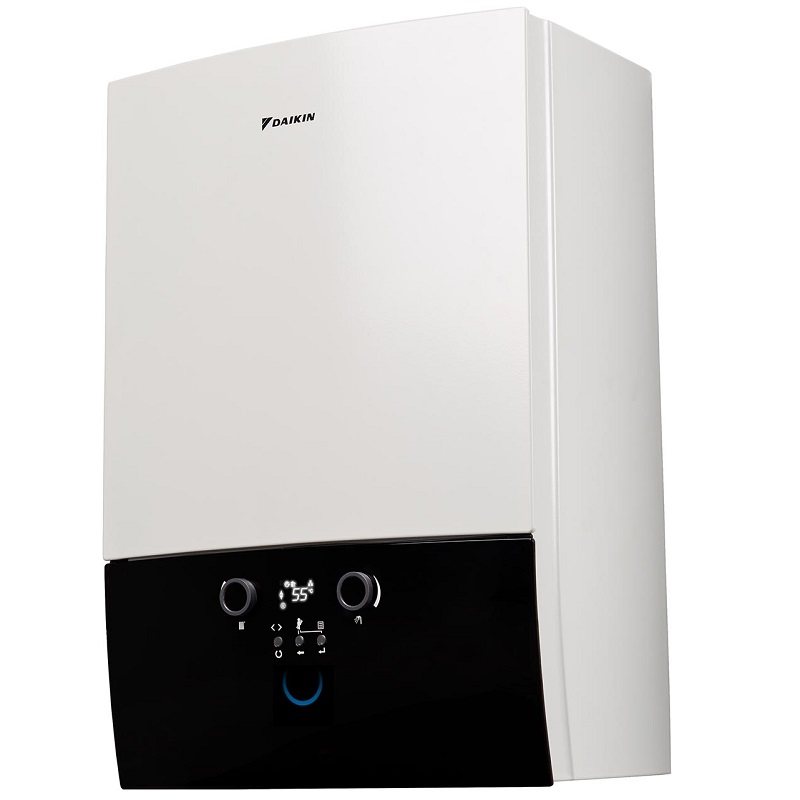

Front panel with LED display, heating and domestic hot water adjustment buttons and Daikin Eye sensor to monitor the operating status at a glance (blue = correct operation; red = faulty)
Daikin Online Controller: with the Lan adapter and the Daikin App, it is possible to control, monitor and schedule the heating.
High energy efficiency: Energy class A complies with the European ERP regulation, up to A+ using modulating controls.

Specifications
Maximum heating capacity: 35.2 kW
DHW production with ΔT=35 ºC (without limitation): 14 l/min.
Energy efficiency class: domestic water / heating: A (A+)
Maximum concentric discharge length 60/100: 7 l
Fuel: natural gas and propane/butane
Dimensions (WxHxD): 695 x 440 x 295 mm
Net weight: 37 kg
