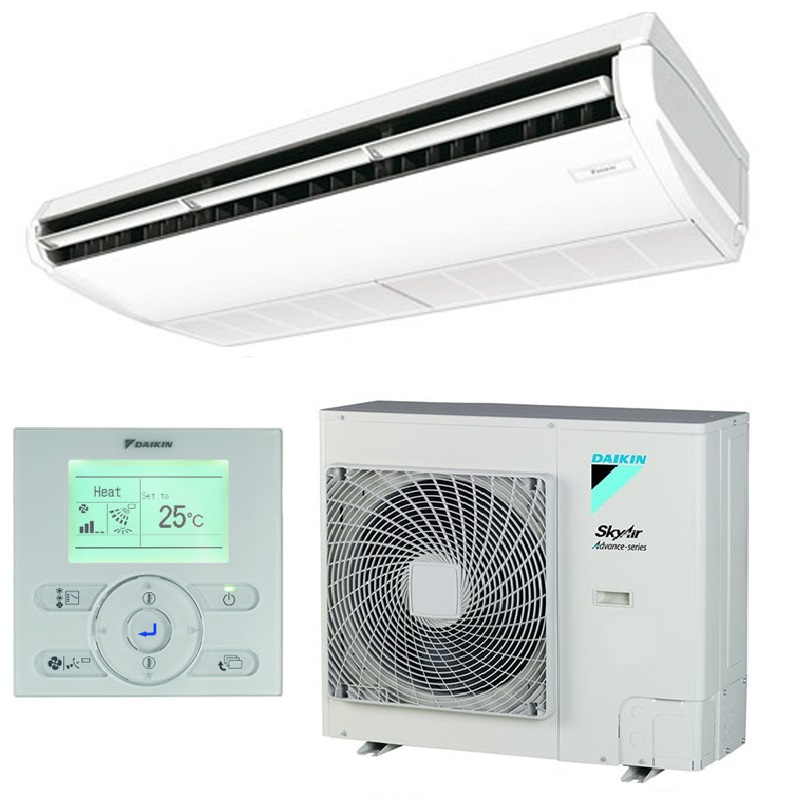

Daikin air conditioning Sky Air Serie Advance HASG125A
Optimal air distribution, it is the ideal solution for shops, restaurants or offices
without false ceiling.
There are 2 ways to adjust the air blowing angle.
Steering up and down (automatic).
Left and right direction.
Leave maximum free space on ceilings and walls for
furniture, decoration and other accessories.
Extremely quiet units both in terms of
inside and out.
The ambient temperature measurement is delayed by
automatically between the return probe and the probe
the order, obtaining greater precision and much
more comfort.
Automatic direction of air flow which guarantees
uniform temperature and flow distribution
of air.

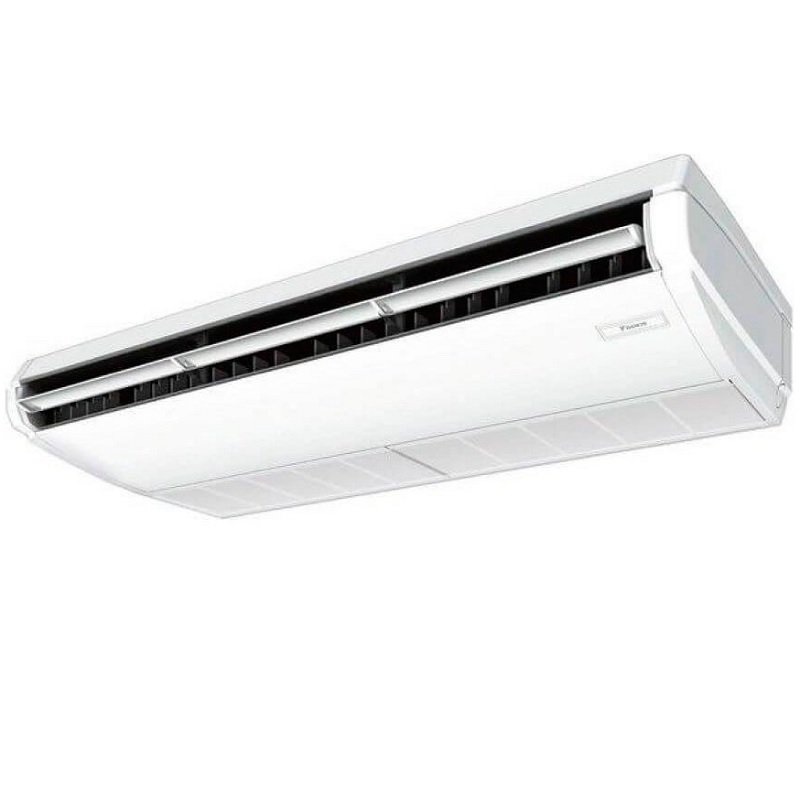

Indoor unit FHA125A

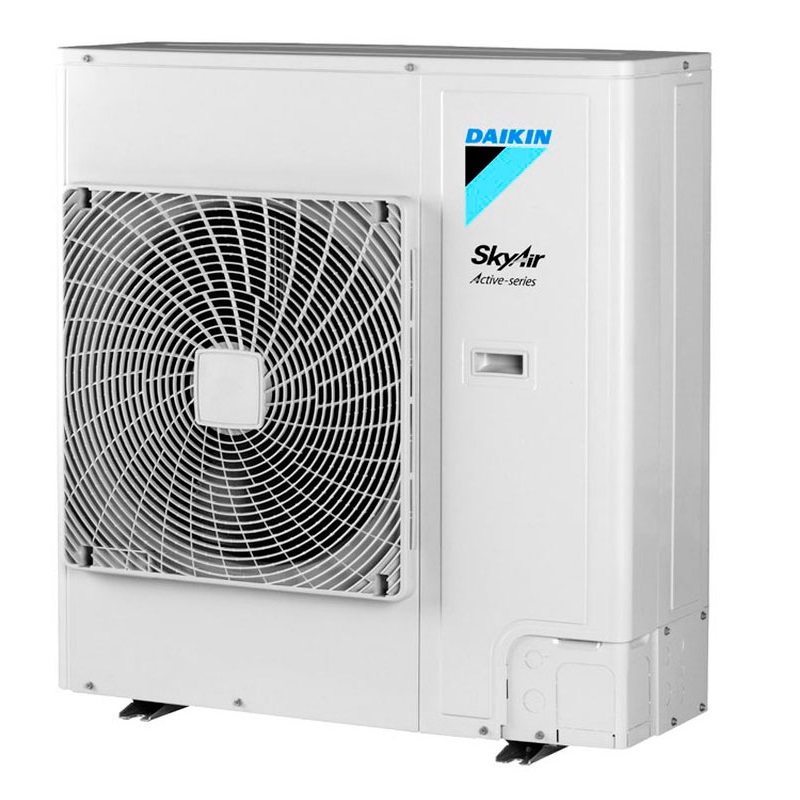

Outdoor unit RZASG125MV1
Wi-Fi optional
Cooling capacity 10,400 Kcal/h (12.10 kW)
Heating capacity 11,610 Kcal/h (13.50 kW)
Refrigerant R-32
Recommended living space 100 - 110 m²
Heat pump yes
Rated heating/cooling consumption 1,297 kWh / 2,193 kWh
Minimum sound level (indoor) 37 dBA
Liquid hose diameter 3/8"
Gas pipe diameter 5/8"
Sound pressure - Cooling 44 / 41 / 37 (dBA)
Sound pressure - Heating 44 / 41 / 37 (dBA)
Single-phase power supply
Energy rating A++
Dimensions of the indoor unit L.1590 x D.690 x H.235 mm
Dimensions of the outdoor unit L.940 x D.320 x H.990 mm
Weight 108 kg
