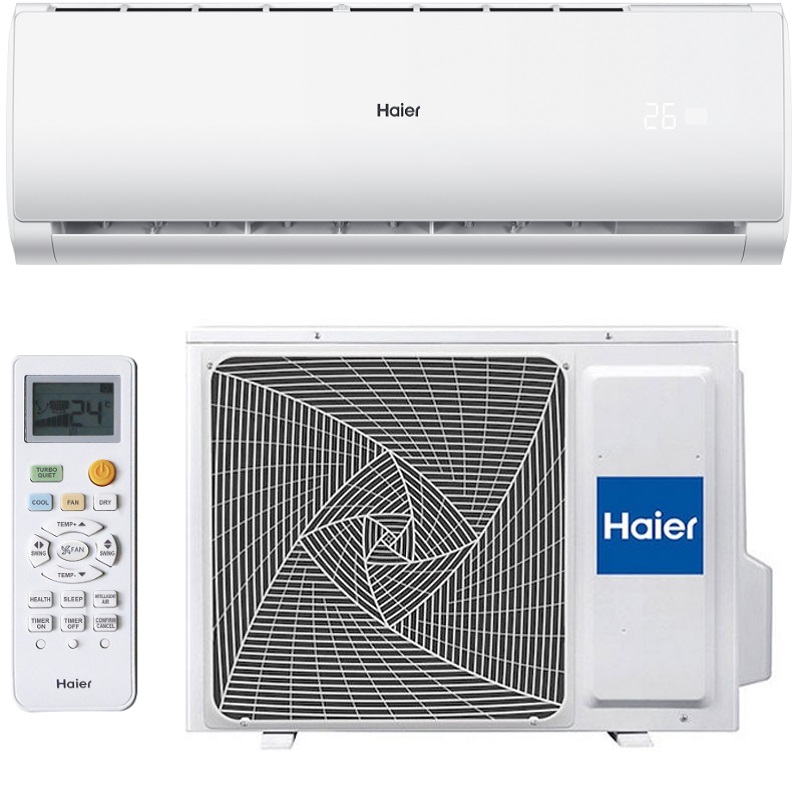

Haier GEOS R+ 68 6.2 kW Air Conditioner (230 V) R32 Wi-Fi Included
Haier GEOS R Plus 68 series mono-split air conditioner. The outdoor unit has a cooling capacity of 4.8 kW and a heating capacity of 4.8 kW. It is recommended for rooms up to 48 m².
Haier GEOS R Plus 68 series mono-split air conditioner. The outdoor unit has a cooling capacity of 4.8 kW and a heating capacity of 4.8 kW. It is recommended for rooms up to 59 m².
Performance Data
Power Output
Cooling: 7.00 kW (2.20 kW-8.50 kW) nominal (minimum - maximum)
Heating: 8.10 kW (2.40 kW-10.00 kW) nominal (minimum - maximum)
Cooling: 2,167kW (0.70kW-2.90kW) nominal (minimum)
Heating: 2,183kW (0.70kW-2.90kW) nominal (minimum - maximum)
Energy efficiency (SEER 7 SCOP): 7.10 (A++) / 3.40 (A+)
Installation data
Refrigerant: R32
Liquid pipe: 6.35 mm (1/4")
Gas pipe: 12.70 mm (1/2")
Maximum pipe length: 25 m
Factory refrigerant charge: 0.81 kg

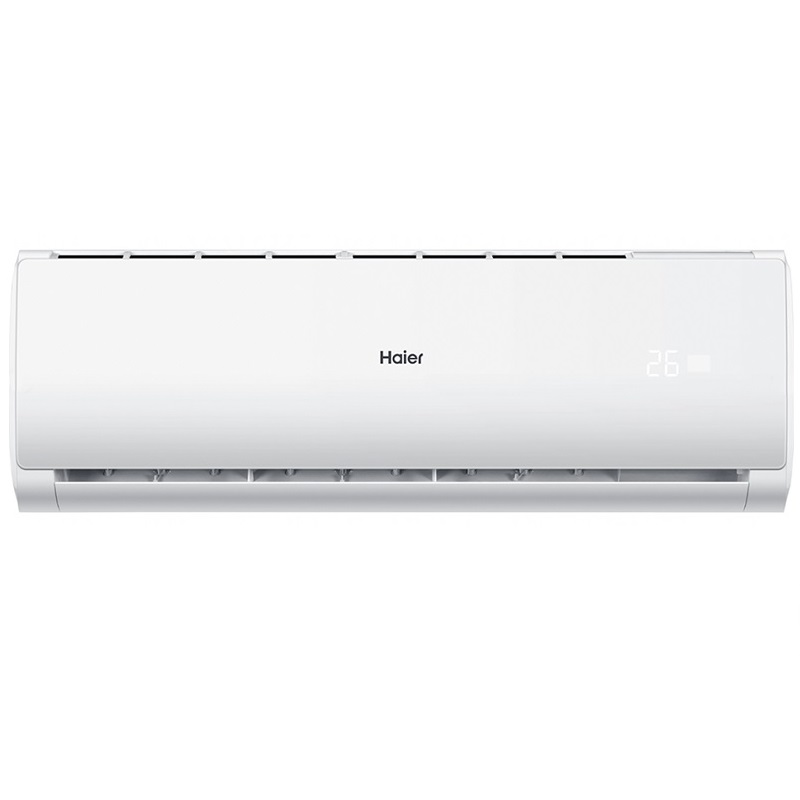

Indoor unit
Power supply: 1/230/50 Ph/V/Hz
Handled air volume: 1200 m3/h
Dehumidification capacity: 2.8 L/h
Maximum sound power (cooling/heating): 60/60 dB Sound pressure (cooling/heating): 47/43/37/30 dB Dimensions: 1125 x 240 x 335 mm
Weight: 17.5 kg

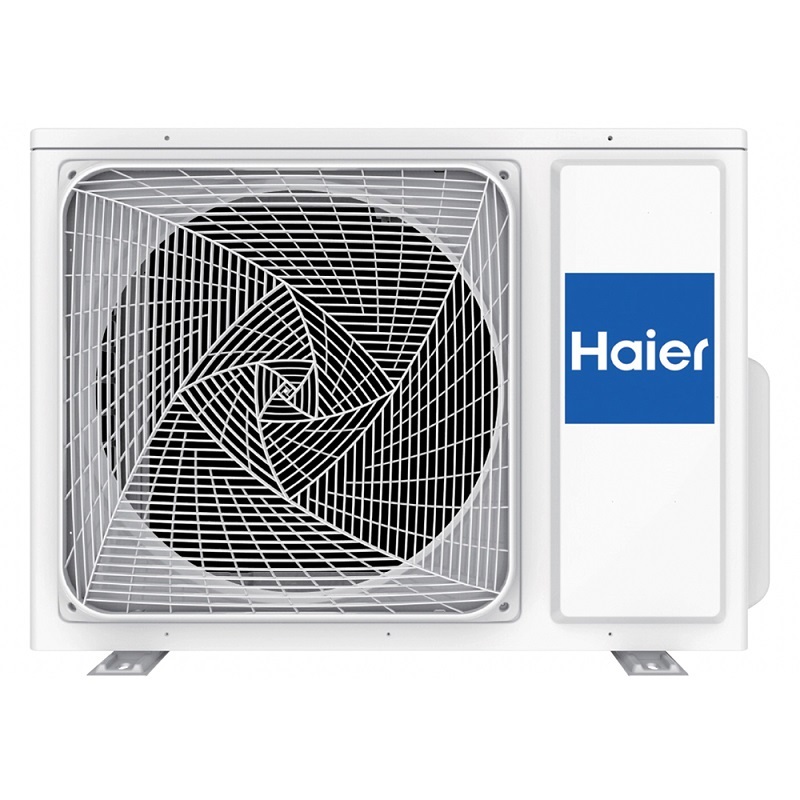

Outdoor unit
Power supply: 1/230/50 Ph/V/Hz
Power cable: 3 x 2.5 N x mm2
Interconnection cable: 4 x 1.0 N x mm2
Sound power: 65 dB
Sound pressure: 52 dB(A)
Dimensions: 890 x 353 x 697 mm
Weight: 52.3 kg
