TCL M42D1W1 Ducted Air Conditioner, 12.0 kW
The TCL M42D1W1 ducted air conditioner range is designed to provide comfort. This series, the brand's highest-end, offers exclusive features such as an integrated electronic expansion valve and a long-life filter. Its cooling/heating capacity is 12/13.20 kW, an ideal capacity for 103 square meters. This unit has 10,320 refrigerant, uses R32 gas, and has a maximum energy efficiency rating, making it economical and versatile.
Cooling Capacity (Min./Nominal/Max.) kW: 3.00/12.00/13.50
Heating Capacity at +7°C (Min./Nominal/Max.) kW: 2.50/13.20/17.00
Cooling Energy Efficiency SEER1 W/W: 5.8
Cooling Energy Efficiency EER W/W 2.66
Heating Energy Efficiency SCOP1 W/W 4.0
Heating Energy Efficiency COP1 W/W 3.42
Factory Refrigerant Charge kg 2.7/30 m
Refrigerant Additional Charge g/m 50
Liquid Pipe Connections ø, inches 3/8
Gas Pipe Connections ø, inches 5/8
Min/Max Pipe Length m 50
Max Pipe Height m 30
Drain Pipe Connections ø, mm VP25 (Ext. 32, Int. 25)

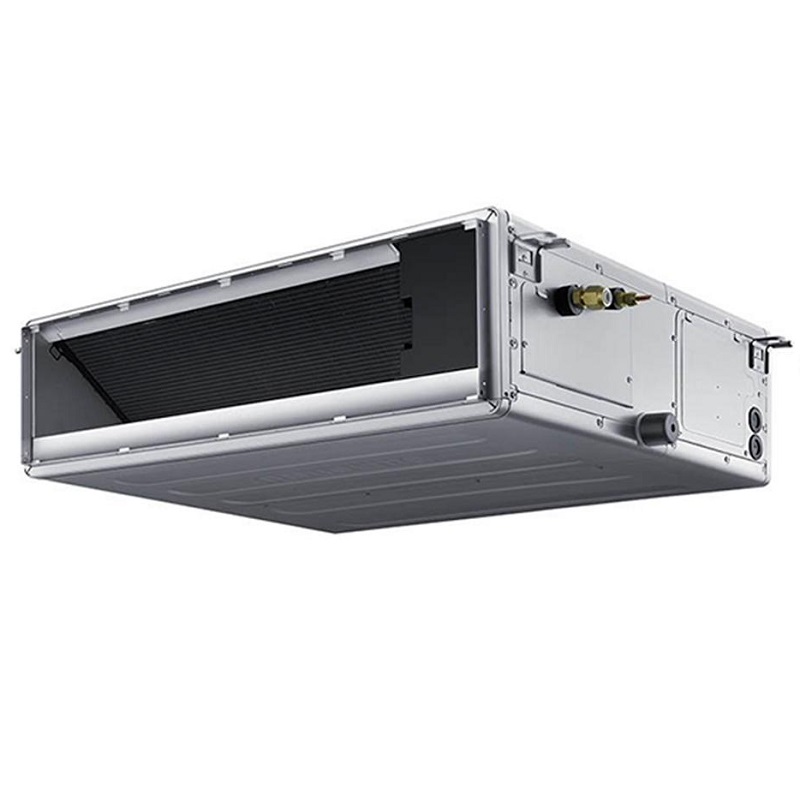

Indoor Unit
Airflow Rate Indoor Unit (A/M/B) m3/min: 33.0/28.0/23.0
Indoor Unit Sound Pressure Level (A/M/B) dB(A): 37/34/30
Power Supply Indoor Unit Φ, No., V, Hz 1Φ, 2, 220~240 V, 50 Hz
Net Dimensions (Width x Height x Depth) Indoor Unit 1400 × 720 × 250 mm

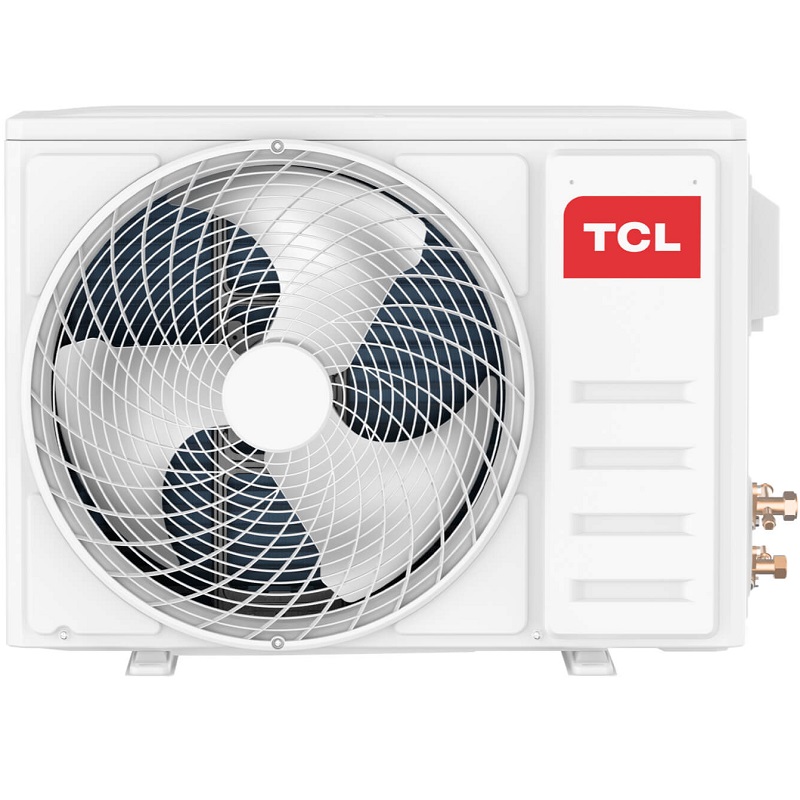

Outdoor Unit
Outdoor Unit Sound Pressure Level (H/D) dB(A) 56/54
Single-Phase Outdoor Unit Φ, No., V, Hz 3Φ, 4, 380~415 V, 50 Hz
Net Dimensions (Width x Height x Depth): 910 × 378 × 804 mm
Net weight Indoor unit kg 38.5
Net weight Outdoor unit kg 81.0
