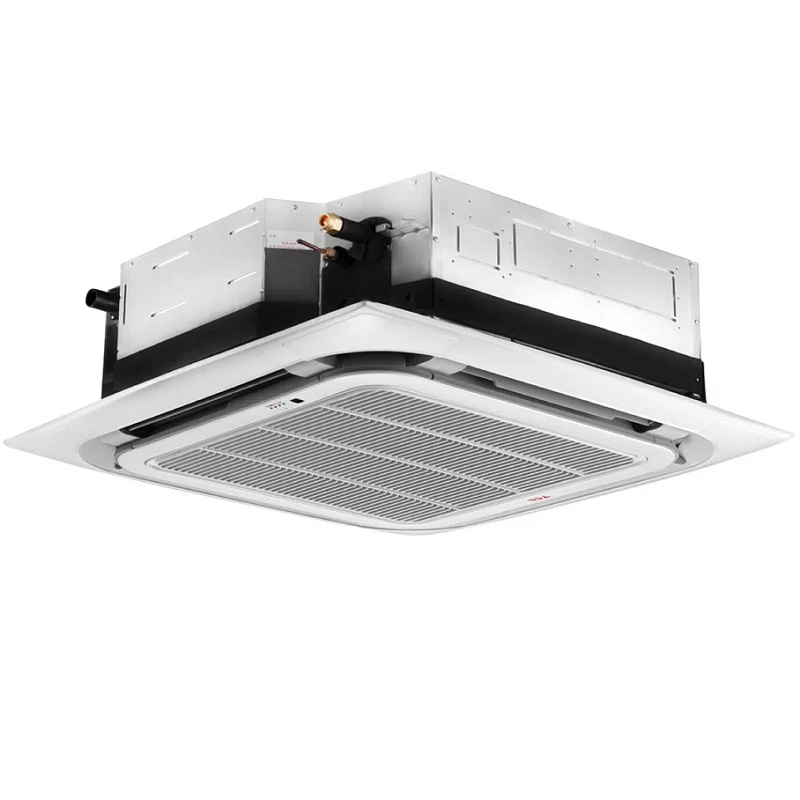

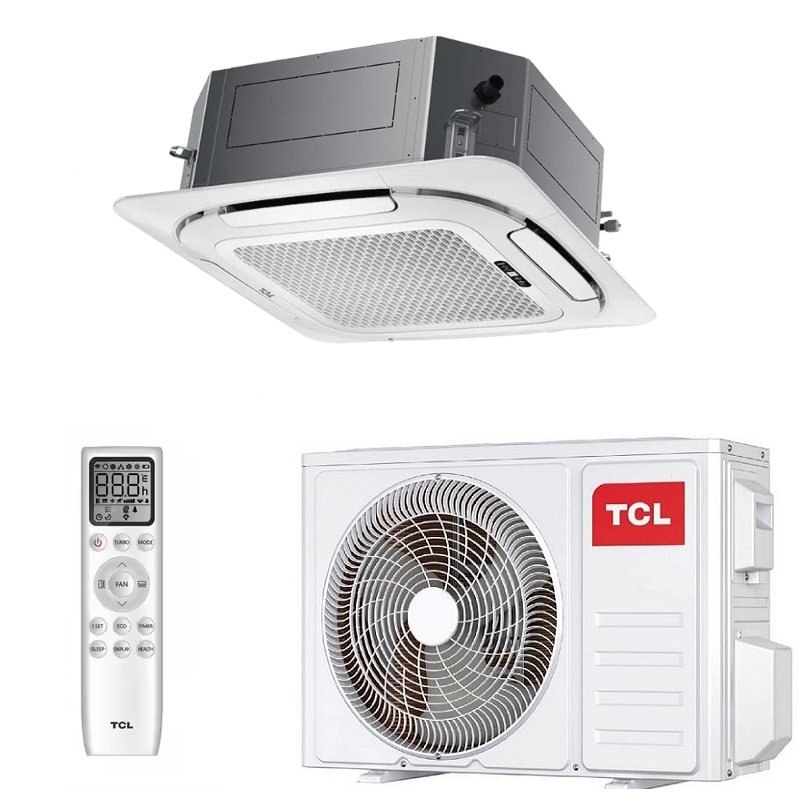

TCL M18S1S3 Cassette Air Conditioner, 5.3 kW
Declared Cooling Capacity (W): 4700 (620~5100)
Declared Heating Capacity (W): 4700 (760~5320)
Pdesignc (W): 5000
Declared SEER (W/W): 6.1
Energy Class: A++
Average Pdesignh (W): 3900
Average Declared SCOP (W/W): 4
Energy Class (Average): A+
Annual Air Conditioning Energy Consumption (kWh/a): 273
Average Annual Energy Consumption (kWh/a): 1365
Dehumidification (liters/h): 2
Indoor Sound Power Level (S/H/M/G/Silent) (dB(A)): 56/53/48/42/38
Sound Power Level Indoor Sound Power Level (nominal conditions) (dB(A)): 56
Outdoor Sound Power Level (nominal conditions) (dB(A)): 65
Power Supply: 230 V/50 Hz/1P
Power Supply Side: Outdoor
Voltage Range (V): 165~265
Outdoor Cooling Operating Current (A): 6.8 (1.6~12)
Outdoor Heating Operating Current (A): 6 (1.7~12)
Outdoor Cooling Power Consumption (W): 1480 (200~2150)
Outdoor Heating Power Consumption (W): 1390 (230~2150)
Refrigerant Type/Charge/GWP/CO2 Equivalent: R32/0.96 kg/675/0.648 ton
Compressor: Inverter
Indoor Air Circulation in Cooling/Heating (m3/h): 750
Outdoor air circulation (m3/h): 2600
Gas connection pipe (inch): 3/8"
Liquid connection pipe (inch): 1/4"
Application area (m²): 20~35
Max. refrigerant pipe length (m): 25
Max. Elevation (m): 10
Operating Temperature Range (°C): 16-31
Indoor Ambient Temperature Range (°C): Cooling: 17-32 / Heating: 0-30
Outdoor Ambient Temperature Range (°C): Cooling: -15-53 / Heating: -20-30
Indoor Net Dimensions (W x H x D) (mm): 570 × 245 × 570 (without panel)
Outdoor Net Dimensions (W x H x D) (mm): 853 × 602 × 349
Indoor Net Weight (kg); 14.5
External net weight (kg): 30
Panel net weight (kg): 2.7
Internal dimensions (packaging) (W x H x D) (mm): 718 × 301 × 657
External dimensions (packaging) (W x H x D) (mm): 890 × 628 × 385
External dimensions (packaging) (W x H x D) (mm): 733 × 105 × 733
Internal gross weight (kg): 18
External gross weight (kg): 32.5
Panel gross weight (kg): 4.25
