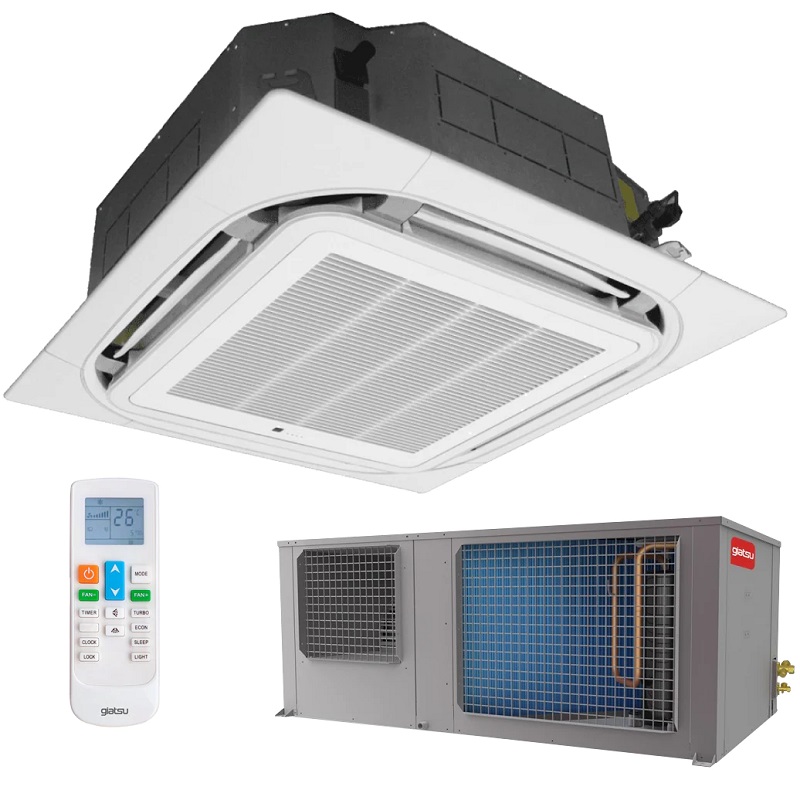

Cassette Air Conditioner Htw/Giatsu GIAC160Q490CEN, 16 kW
Giatsu presents an innovative Mini VRF air conditioning system with powers from 10.5 kw to 22 kw, with centrifugal fan, designed so that the outdoor unit can be installed inside a room, to contribute to the aesthetics of the facade.
Ideal for commercial premises, offices or any building that requires a clean facade without visible outdoor equipment. It can be installed from 1 to 9 interiors, the indoor units can be splits, ducts, cassettes, floor-ceilings or columns.
The air that can be felt without being seen: the invisible centrifuge by Giatsu
Invisible centrifuge, a flexible solution with multiple installation possibilities.
High installation flexibility
Excellent air flow
Consumption and space savings
Compatible with the air zone
Ideal for commercial installations
Difference between indoor and outdoor: 30 meters
Maximum air flow: up to 1,800 m³/h depending on the model
Refrigeration capacity 16 kW
Btu/h 55000
Power consumption 7.3 kW
Current 11 A
SEER 5.56
Heating
Capacity 16.2 kW
Btu/h 48000
Power consumption 4.1 kW
Current 18.1 A
SCOP 3.51
Noise level 38-46 dB (A)
Air flow 1800 m³/h

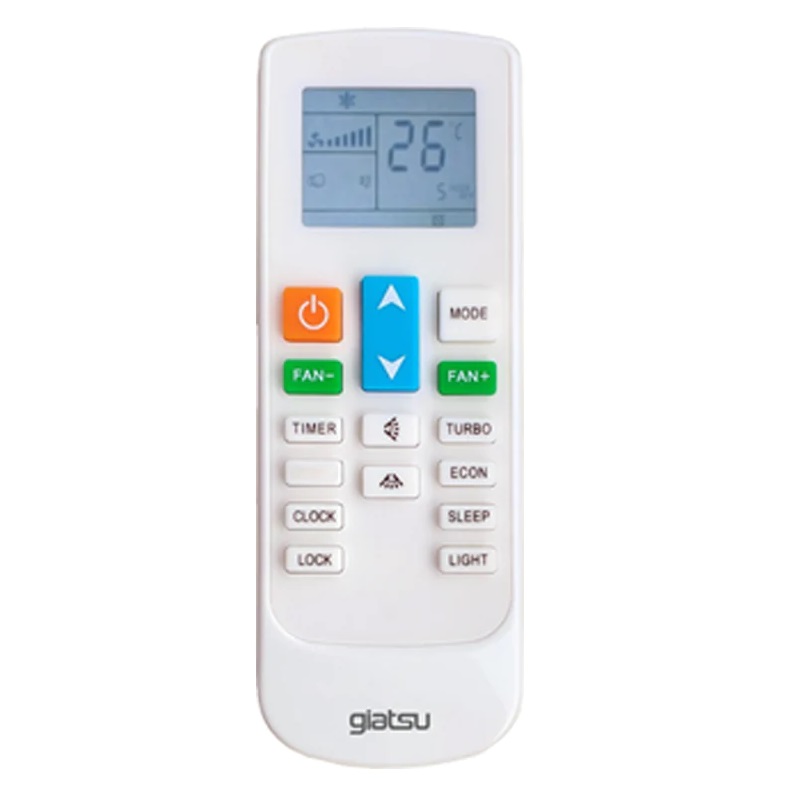

Standard control Remote control Remote control
Maximum input consumption 4.7 kW
Maximum current 26 A
Gas R410A
Refrigerant charge 3500 gr

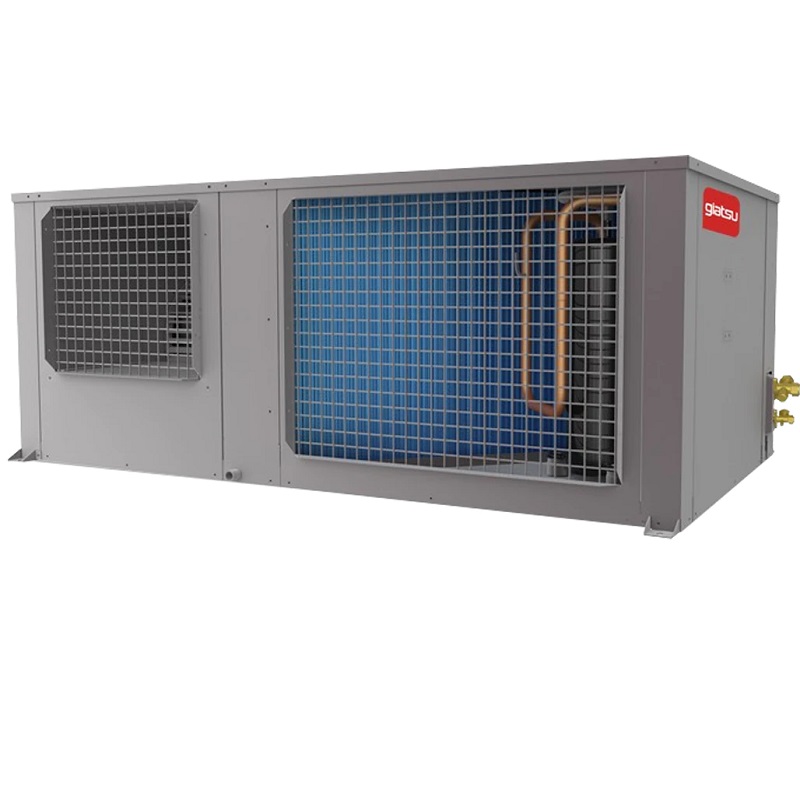

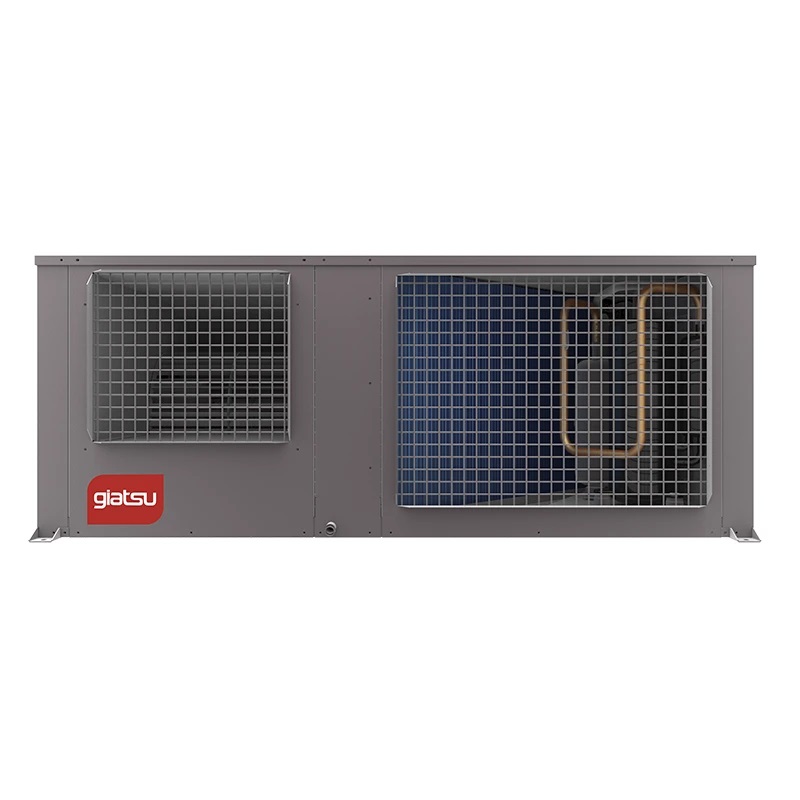

Dimensions outdoor unit (LxWxH) 1508×927×583 mm

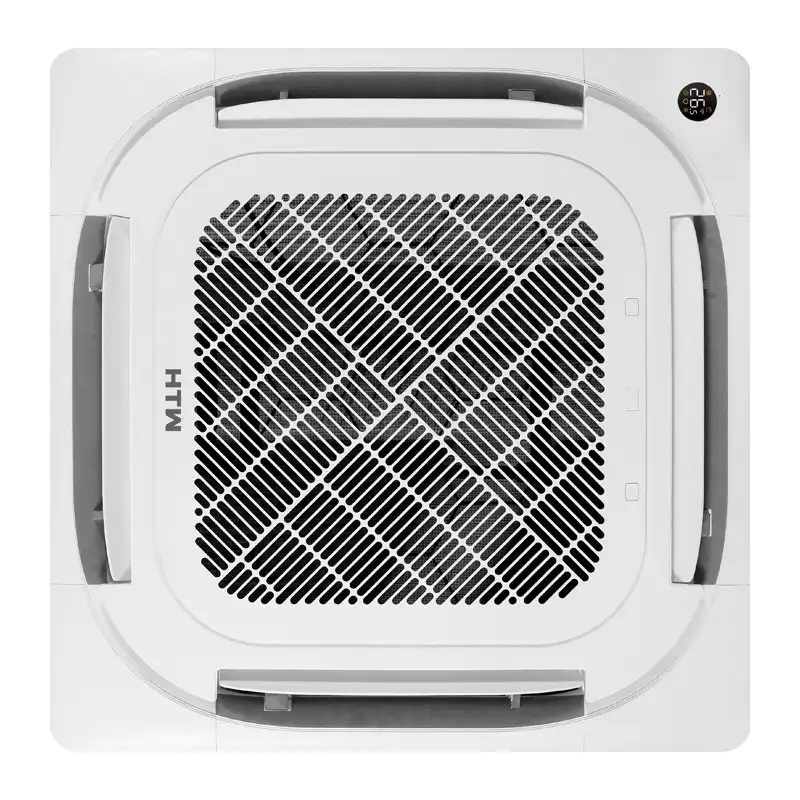

Dimensions indoor unit (LxWxH) 833x286x900 mm
Weight 173 kg
