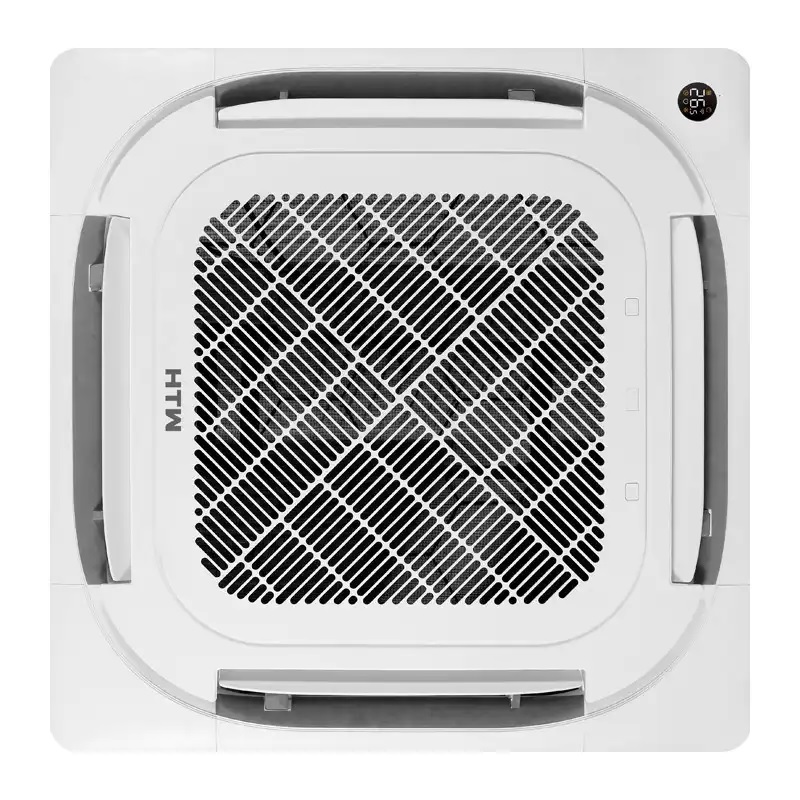

Cassette Air Conditioner Htw/Giatsu GIAC140Q490CEN, 14 kW

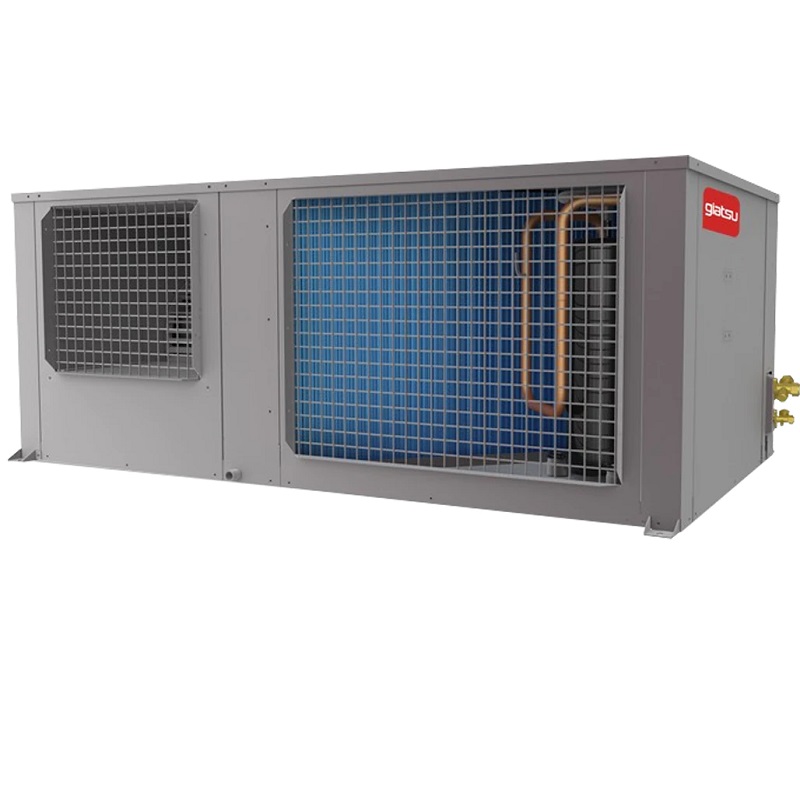

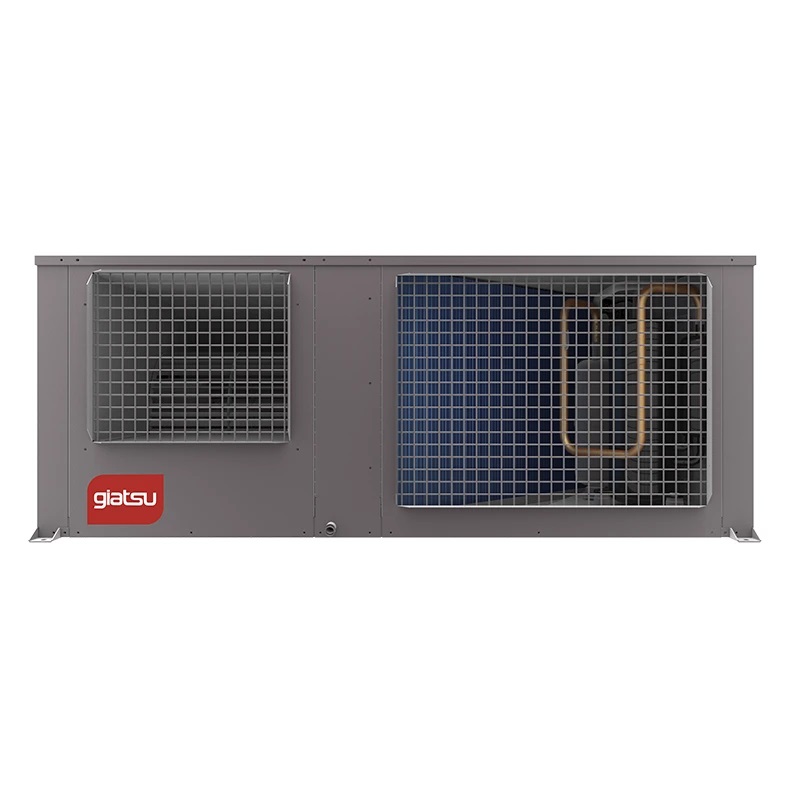

Giatsu presents an innovative Mini VRF air conditioning system with powers from 10.5 kw to 22 kw, with centrifugal fan, designed so that the outdoor unit can be installed inside a room, to contribute to the aesthetics of the facade.
Ideal for commercial premises, offices or any building that requires a clean facade without visible outdoor equipment. It can be installed from 1 to 9 interiors, the indoor units can be splits, ducts, cassettes, floor-ceilings or columns.
The air that can be felt without being seen: the invisible centrifuge by Giatsu
Invisible centrifuge, a flexible solution with multiple installation possibilities.
High installation flexibility
Excellent air flow
Consumption and space savings
Compatible with air zone
Ideal for commercial installations
Difference between indoor and outdoor: 30 meters
Maximum air flow: up to 1,800 m³/h depending on the model
Refrigeration capacity 14 kW
Btu/h 48000
Power input 6.8 kW
Current 10 A
SEER 5.83
Heating
Capacity 14.2 kW
Btu/h 48000
Power input 4.1 kW
Current 18.1 A
SCOP 3.51
Maximum input consumption 4.7 kW
Maximum current 26 A
Gas R410A
Refrigerant charge 3500 gr
Outdoor unit dimensions (LxWxH) 1508×927×583 mm
Indoor unit dimensions (WxDxH) 833x286x900 mm
Weight 173 kg
