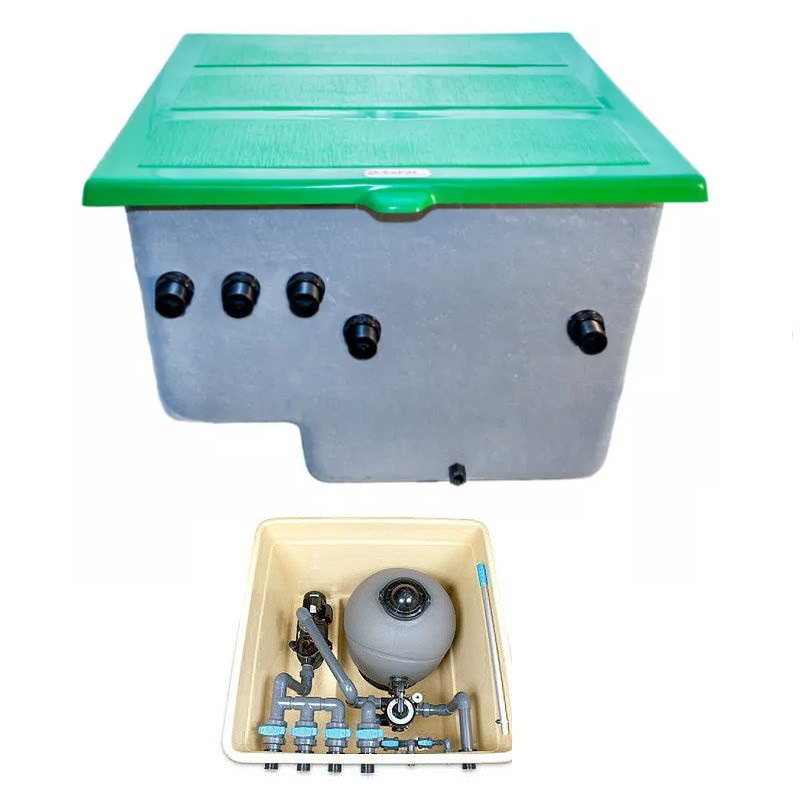

In-ground cabin injected with high-strength fiber, Alaska Ø500 filter + Star 0.75 HP

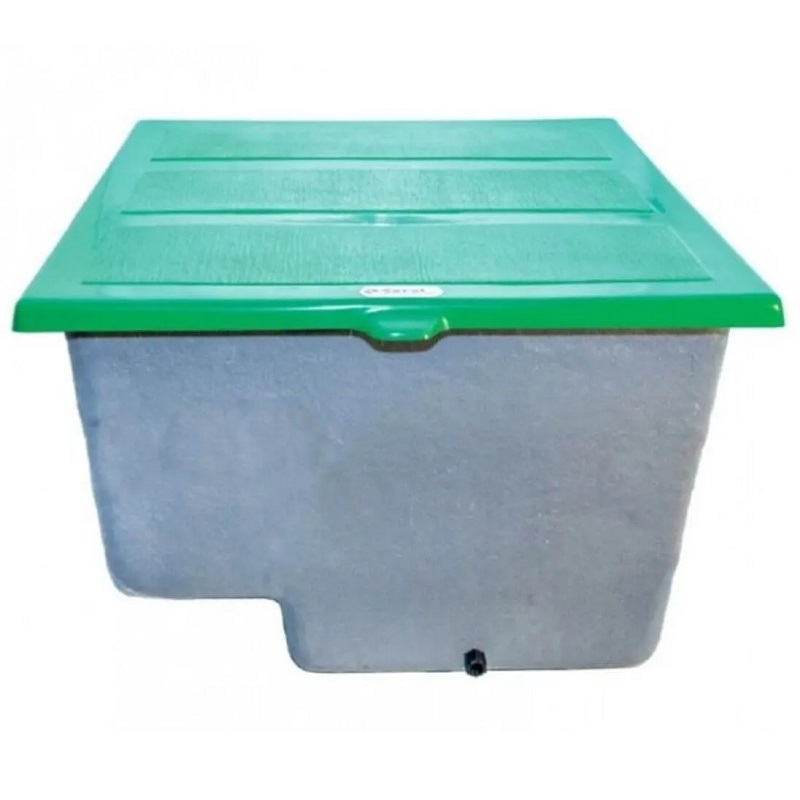

Empty underground shelter designed to protect the pool filtration system.
Made of fiberglass and polyester, with a cover available in green or beige for a natural blend.
Designed for underground installation, with a plant cover for better integration.
In-ground cabin injected with high-quality, durable fiber.
It incorporates an Alaska 500 filter with an internal diameter and a 0.75 HP Star pump.
High-quality PVC material (pipes, fittings, and ball valves).
Easy installation and maintenance.
Designed for outdoor installation.
Maximum working pressure: 2.5 bar.
Maximum operating temperature: 40°C.

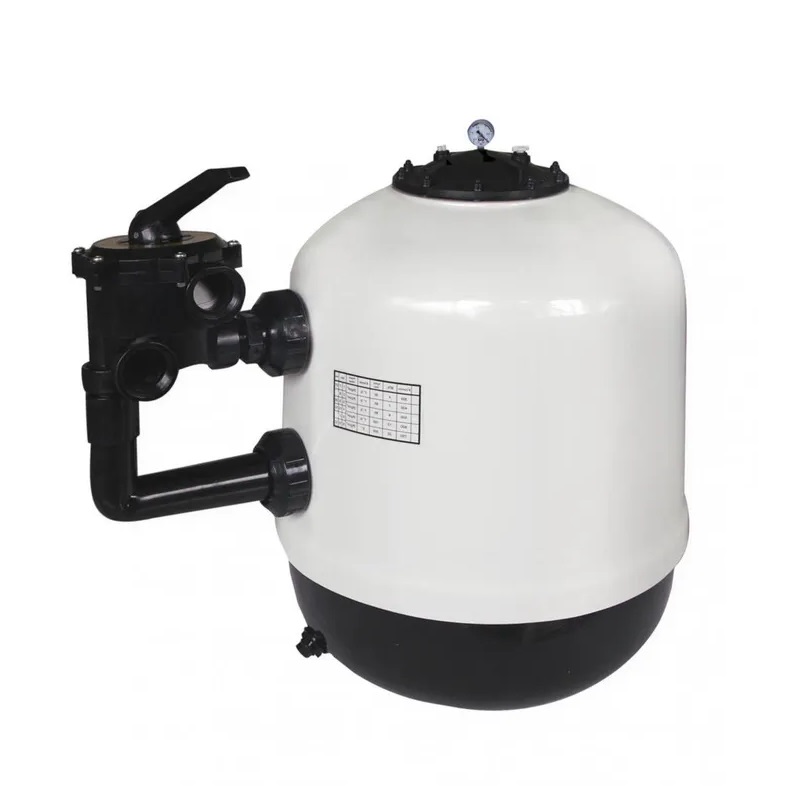

Alaska Ø500 filter: 10 m3/h.
Selection valve: 1 1/2"
Number of strainers: 8
Nozzles: 140 mm
Pressure gauge: Yes
Technical data
Maximum water temperature: 35°C
Adapter: 32/38 mm
Mechanical seal: AISI 304, suitable for salt water
Motor specifications: Class F, IP55, 50 Hz, 2 poles
Body, impeller, basket, cover: PP+GF/Noryl+ABS/PC
Dimensions: L.110 x H.95 x D.110 cm
Sand weight: 85 kg
Glass weight: 69 kg
