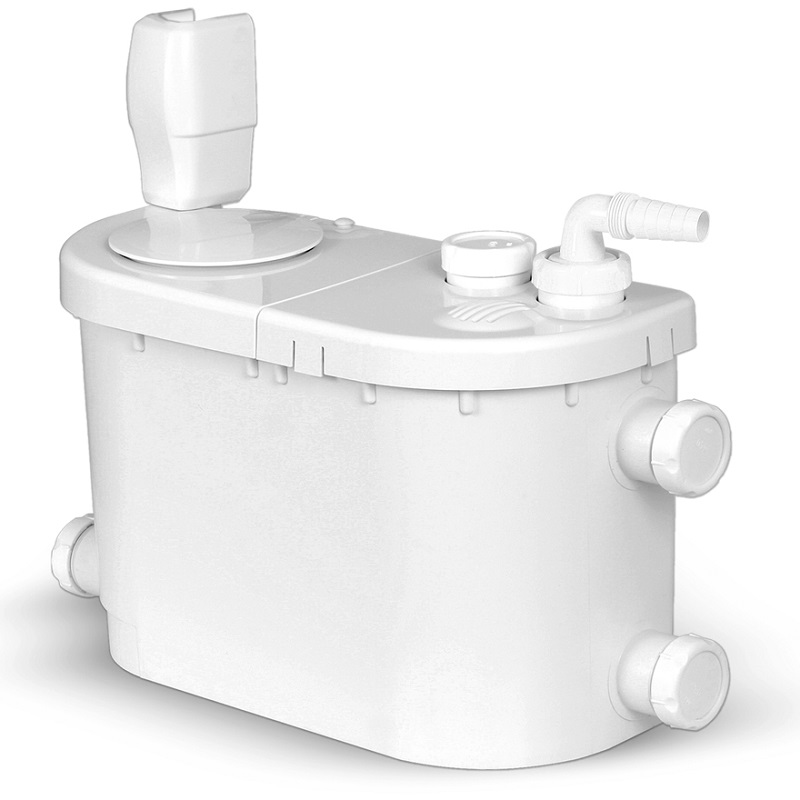

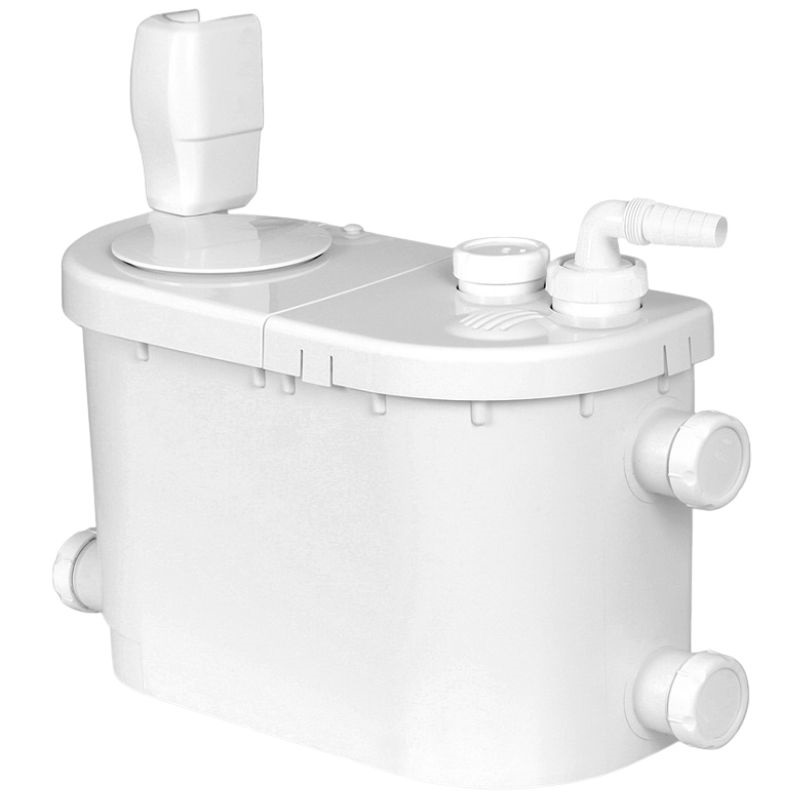

Cyclon LS EB-705 Sanitary Macerator

Cyclon LS EB-705 Sanitary Macerator

Ciclon offers a complete range of products to suit all needs. Sanitary macerators with WC water inlet and Ø 40 mm auxiliary connections, Ø 32 mm vertical outlet for bonding, and a non-return valve. Cassete system for quick and easy maintenance, quiet operation, and a lifting station. Equipped with a non-return valve. Ø 32 mm vertical outlet for bonding, Cassete system for quick and easy maintenance.

Built-in cistern with glass lid and integrated macerator, framed cistern, height 1125 mm, depth 130 mm, its tempered glass front cover facilitates access to the unit. With our macerators and lifting stations, you can install a bathroom, toilet, laundry room, or kitchen anywhere in your home, loft, cottage, basement, or commercial premises, where its installation was not originally planned and where there are therefore no drainage pipes.

Lifting station equipped with a check valve
Inlets
1 x 2 1/2” x 40 mm inlet for Ø 40 mm smooth pipes
1 x 2 1/2” x 40 mm inlet for Ø 40 mm smooth pipes with check valve
1 x 1 1/2” x 40 mm inlet for Ø 40 mm smooth pipes with check valve.
Two 40 mm DWV adapters are supplied.
Outlet:
25 mm PVC pressure pipe
1 x 1/4” x 32 mm removable with 25 mm adapter
Pump: V .zH 05 ,CA ,V 042
Electrical connection: For standardized installation
Maximum delivery height: 7 meters
Maximum horizontal delivery distance: 72 mm
Dimensions and weight: 5.72 x 0.81 x 314 mm
Weight: 6.7 kg
Weight including packaging: 8.9 kg
