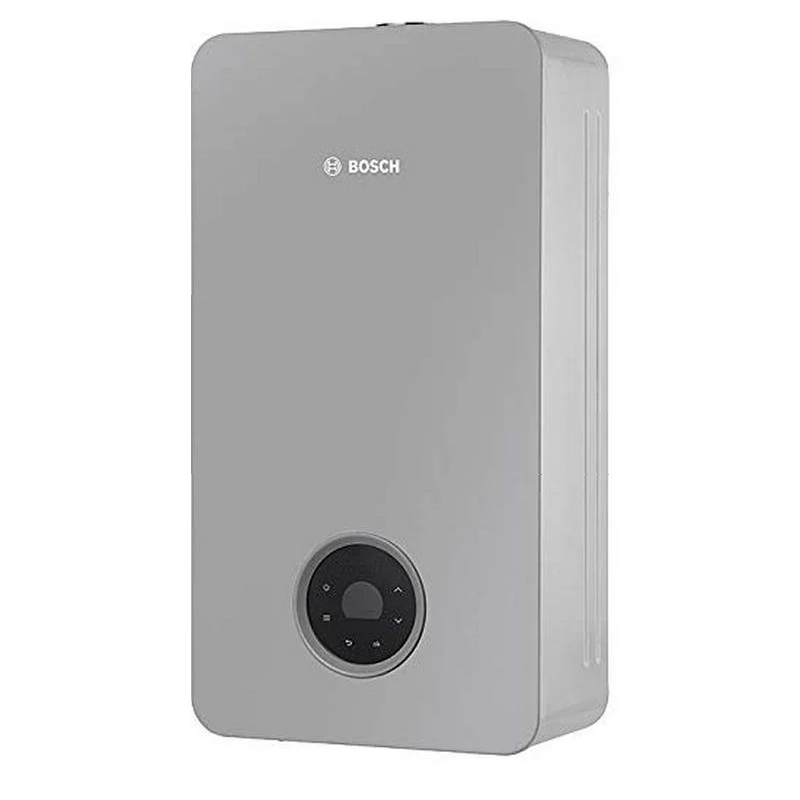

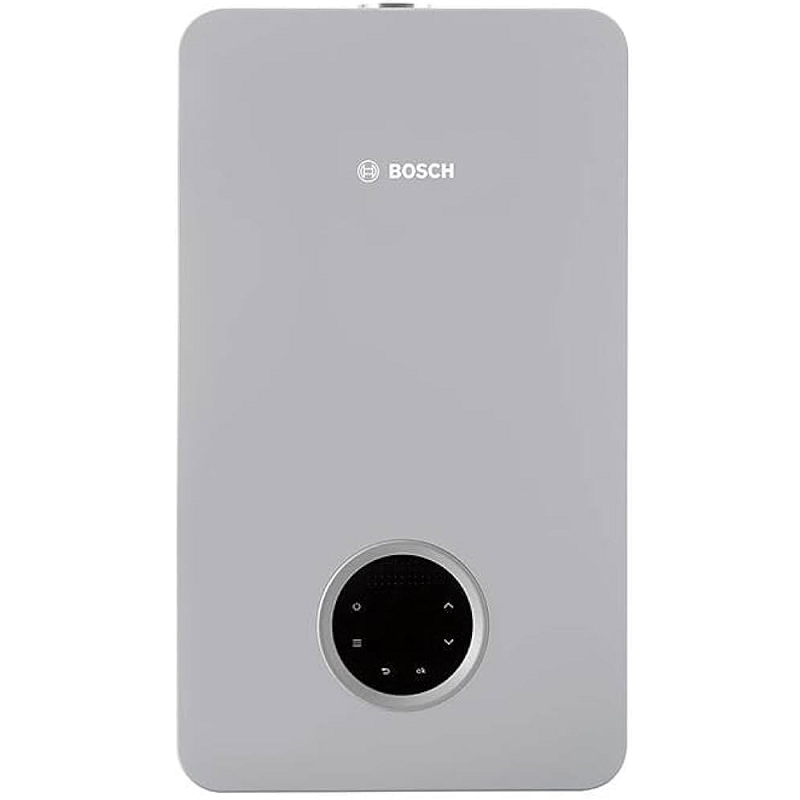

Bosch T5700 S12 D31 Butane Gas Water Heater
Wall-mounted water heater for mobile homes, LPG, 20.7 kW output, instantaneous, 12 l/min flow rate, DHW energy class A, sealed chamber, dimensions 18 cm length, 33.5 cm width, 57.5 cm height, weight 13 kg.
With the Therm 5700 S water heater with sealed chamber and forced draft, comfort not only means that you always have all the domestic hot water you need, but also that you can easily adjust the appliance to your needs thanks to the intuitive control panel.
The appliance automatically adjusts its output in a range between 20 and 100% of its maximum capacity depending on demand, thus ensuring efficiency even when the domestic hot water requirement is low. In addition, the constant electronic temperature control helps to keep energy costs low.
Ignition type: Automatic (230 V electrical connection)
Capacity in litres: 12 l/min
Energy efficiency class in ACS: A
ErP spectrum: A+ to F
Consumption profile in ACS: M
Power: 4.1 - 20.7 kW
Minimum operating pressure: 0.1 bar
Maximum available pressure: 12 bar
Flow rate range: 2.8 - 8.5 l/min
Efficiency at 100% nominal load: 90
Efficiency at 30% nominal load: 91
Maximum vertical discharge length: 4 m
Maximum horizontal discharge length: 4 m
Diameter of the discharge pipe: 80/110 mm
Solar compatibility: Yes
LCD digital display: Yes
Connectivity: No
Dimensions (h. x w. x d.): 575 x 335 x 180 mm
Weight: 13 kg
