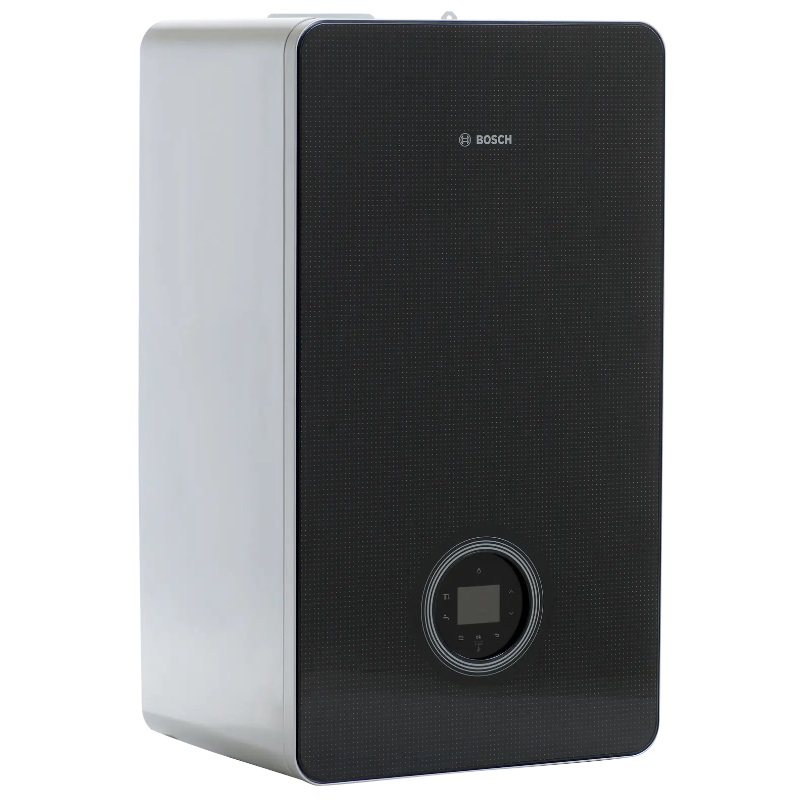

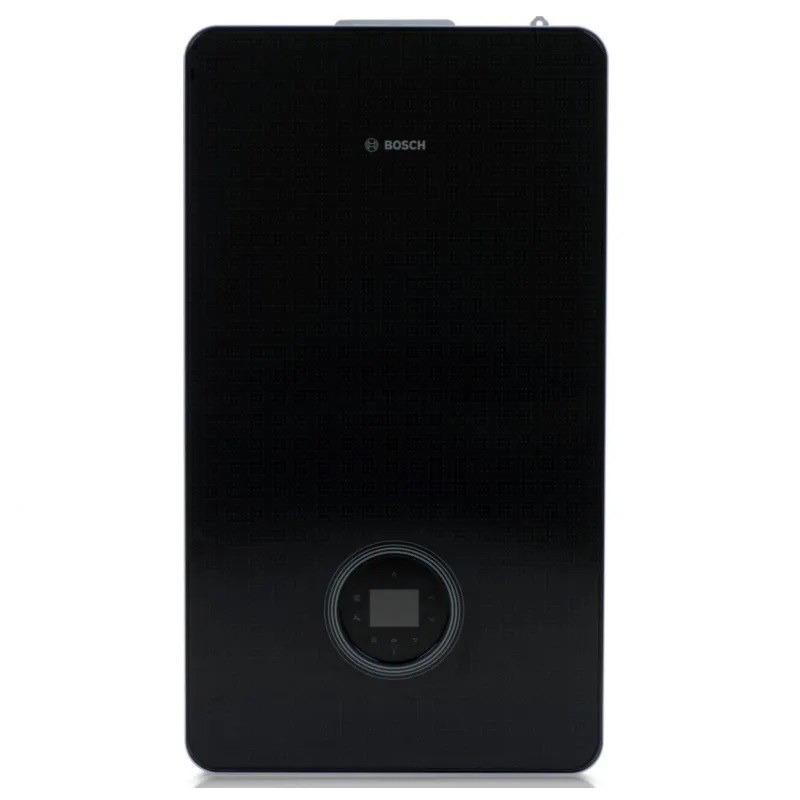

Bosch Natural Gas Boiler GC8700iW 35/40
The Condens GC8700iW 35/40 wall-mounted boiler is easy to replace, offers greater comfort in domestic hot water and an intuitive interface thanks to its integrated regulation.
The Bosch GC8700iW 35/40 natural gas wall-mounted boiler has small dimensions that allow the user to install the equipment inside or between kitchen cabinets, for example, thanks to the fact that it has a robust folding mechanism and also has electronic connections accessible without openings, in the boiler housing, this equipment allows the user to easily replace and adapt the existing hydraulic configurations of previously installed models, such as the Junkers equipment of the Cerapur Comfort and Cerapur ranges.
Boiler Bosch 8700i W 35/40
Model: Condens 8700i W 35/40
Heating efficiency ηs %: 94
Maximum rated thermal output (Pn): 40.8
Nominal thermal load of hot water (QnW) kW: 40.8
Maximum rated thermal output (Pmax) 40/30 °C kW: 35.2
Maximum rated thermal output (Pmax) 80/60 °C kW: 33.6
Minimum rated thermal output (Pmin) 40/30 °C kW: 17.6
Minimum rated thermal output (Pmin) 80/60 °C kW: 16.9
Specific flow rate according to EN 13203-1 (ΔT = 30 K) l l/min: 18.0
Maximum noise level dBA: 54.9
Nominal capacity of the expansion vessel (EN 13831) l: 12
Installation type - B23(P), B33, B53(P), C13, C33, C43, C53, C63, C83, C93, C(10)3, C(12)3,C(13)3, C( 14 )3 NOx level - 6
IP protection type: X4D
Dimensions (W x H x D): 780x440x365 mm
Weight (without packaging): 50 kg
