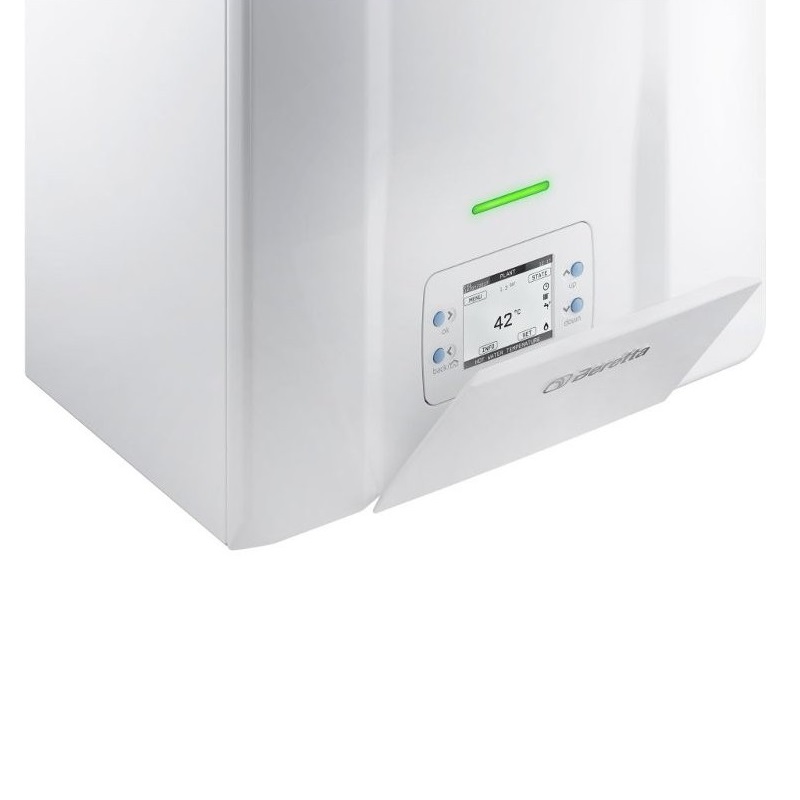

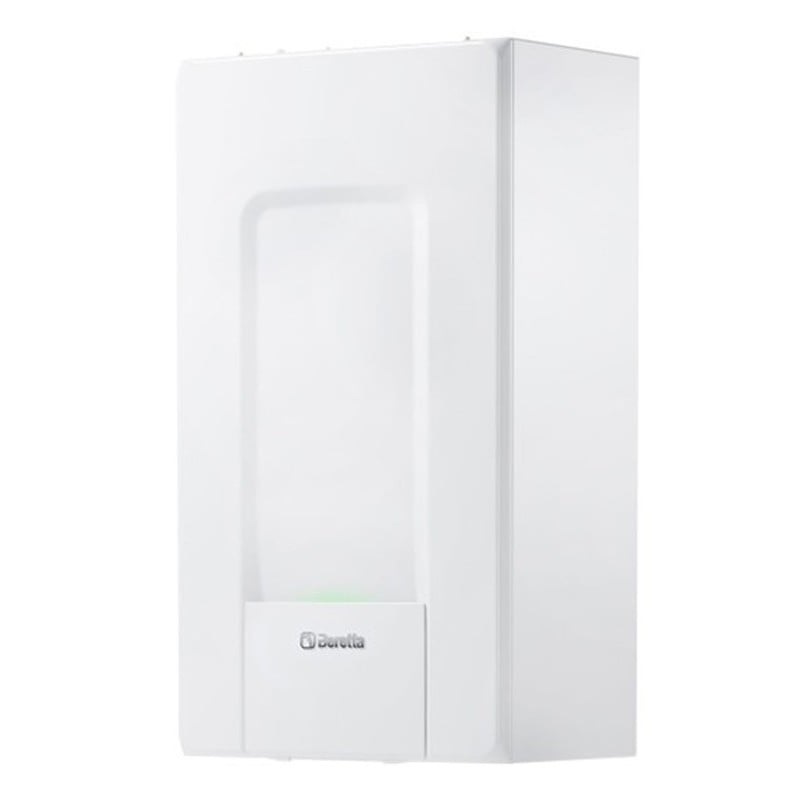

Beretta Mynute X 25 CSI Natural/Butane Boiler
Beretta mixed instantaneous natural gas condensing boiler of 19 Kw with decompression chamber, indoor installation, with stainless steel exchanger, ideal for 120 m2 environment
Brand Beretta
Seasonal heating energy efficiency class
Sanitary energy efficiency class
Nominal power according to ErP 19 kw
Seasonal energy efficiency of the heating system 92%
Heating thermal capacity (max-min) 20.00-3.60 kw
Nominal DHW heat input (max-min) 25.00-3.60 kw
Power supply 230V - 50Hz
IP protection degree X5D
NOx class 6
Maximum heating pressure-temperature bar- 3-90 °C
Maximum DHW pressure bar 8
Heating Inlet-Outlet / 'Gas Inlet 3/4 diameter
Healthcare Inlet - Outlet / Delivery - Kettle Return 1/2 diameter
Max Length for concentric ue (Ø60-100 mm) 10 meters
Max Length for split exhaust (80 + 80) 60+60 mm
Dimensions (H.xP.xL.) 740x420x275 mm
Weight 35 kg
