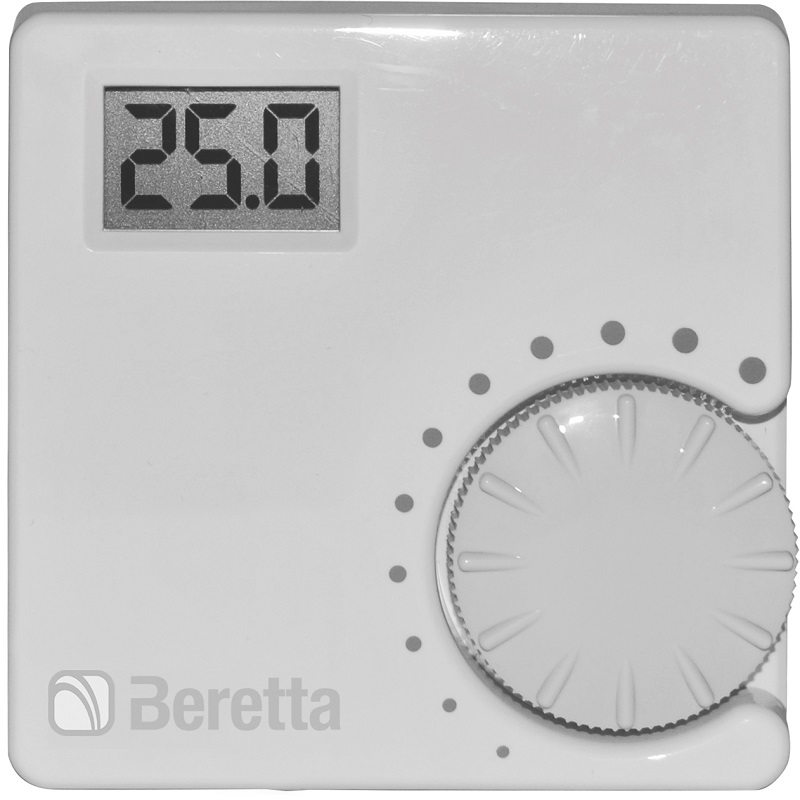

Beretta Alpha DGT Wireless Modulating Remote Thermostat
The wireless room thermostat is a heating system control device that allows you to set a comfortable temperature in the room in order to maintain this temperature for a long time, unlike a conventional thermostat, this device consists of two separate blocks
The receiver acts as a signal generator to turn the boiler on/off, and the transmitter serves as a user panel and room temperature sensor, both units are connected to each other by radio waves (RF), data exchange on a radio frequency is carried out in one direction only from the transmitter to the receiver, no signal is sent to the transmitter, therefore no communication error information/alarms can be displayed on the transmitter display.
The transmitter can be installed as a regular room thermostat. No electrical connection is required, because the transmitter contains batteries, the receiver is connected to the boiler, it is delivered prepared for connection, so it is not necessary to open it, the receiver has a transparent button made of honeycomb plastic, which also has a green and red LED integrated, this device is installed in the desired area of your home and maintains the required temperature for a certain time.
Manufacturer: Beretta
Wired room temperature controller with LCD display.
Additional functions: Display of actual and set temperature, battery status.
Sensor: NTC sensor.
Setting range: 5 - 35 °C (0.2 °C steps).
Contacts: min. 1 mA, max. 2 A - 30 V, 0.25 A - 230 V.
Power supply 2 x 1.5 A.
