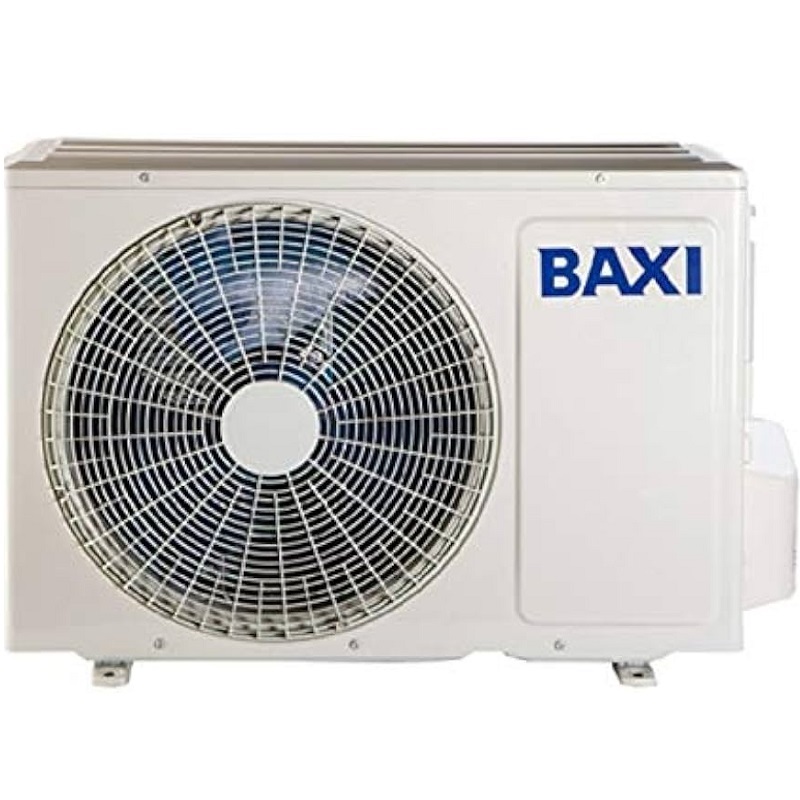

Baxi M-ANORI LSGT70-3M outdoor unit
iFeel function: When close to the remote control, the equipment takes into account the conditions around the user and will operate in the most appropriate way to obtain the most suitable and comfortable temperature control,
Night mode (Sleep).
Self-cleaning function (iClean): Automatically cleans the indoor unit from dust and dirt.
Antibacterial function (anti-leakage): Prevents and eliminates the formation of bacteria due to humidity.
Turbo function: Increases the capacity of the appliance by 30%.
Anti-cold air function: Prevents the evacuation of cold air when starting operation in heating mode.
Planner
7.9 kW tri-split outdoor units 3 outlets
Combinable with up to 3 ANORI indoor units
Maximum efficiency: A++ / A+ for all sets.
Minimum noise: sound power of only 61 dB(A) to 65 dB(A).
Wide operating range: from -15°C (outside temperature) in heating and up to +52°C (outside temperature) in cooling.
Wide operating range: from -15°C (outdoor temperature) in heating
and up to +52°C (outdoor temperature) in cooling
Brands Baxi LSGT 70-3M
Self-diagnostic system
Inverter type Ultra DC
Energy class A++
Nominal cooling capacity (min.-max.) 7.90 (2.30 - 8.69) kW
Nominal heating capacity (min.-max.) 8.20 (2.45 - 9.02) kW
SEER/SCOP 6.29/4.04
Refrigeration/heating energy class A++/A+
Nominal cooling power absorbed (min.-max.) 2.27 (0.56 - 3.40) KW
Nominal current absorbed in refrigeration A 9.60
Power supply n° phases 220-240,50,1 V~,Hz
Sound pressure 57 dB(A)
Interconnection cables 2 3x1,5+T mm
Warranty 3 years
Refrigerant gas type R32
Dimensions width/height/depth 834/655/335 mm
Weight of the outdoor unit 44.5 kg
