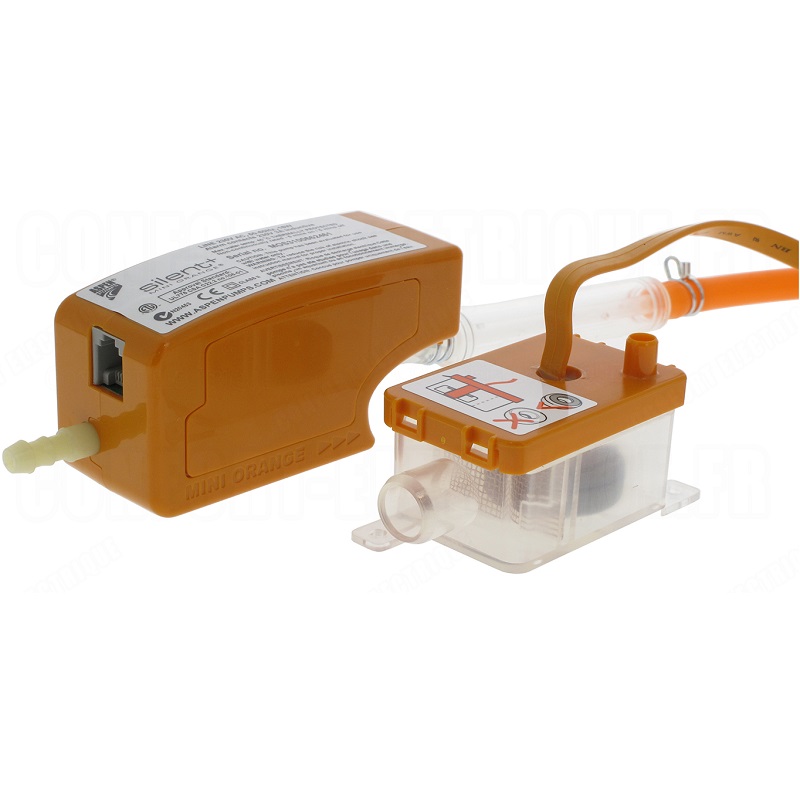

Aspen Silence+ Mini Orange condensate pump

Aspen Silence+ Mini Orange condensate pump

The mini-pump leading the world market becomes the quietest in its category! Equipped with a vibration reducer, as well as an anti-vibration tube and support, the Mini Orange Silence+ pump is ultra-quiet
Max flow 12 l/h at a height of 0 m
Max height rec. 10m
Max height suction 2 m
Sound level at 1 m 19 dB(A)
Power supply 230 VAC, 50-60 Hz, 0.11 A, 16W
Non-continuous operation
Insulation class Device II
Max power of
air conditioner 16 kW (54,000 Btu/h)
Temp. max. water 40 o
C (104°F)
Drain pipe Diam. int. 6mm
IP protection rating IP21
Safety switch 3.0 A, normally closed
Thermal protection
Fully waterproof housing
Self-priming

Included

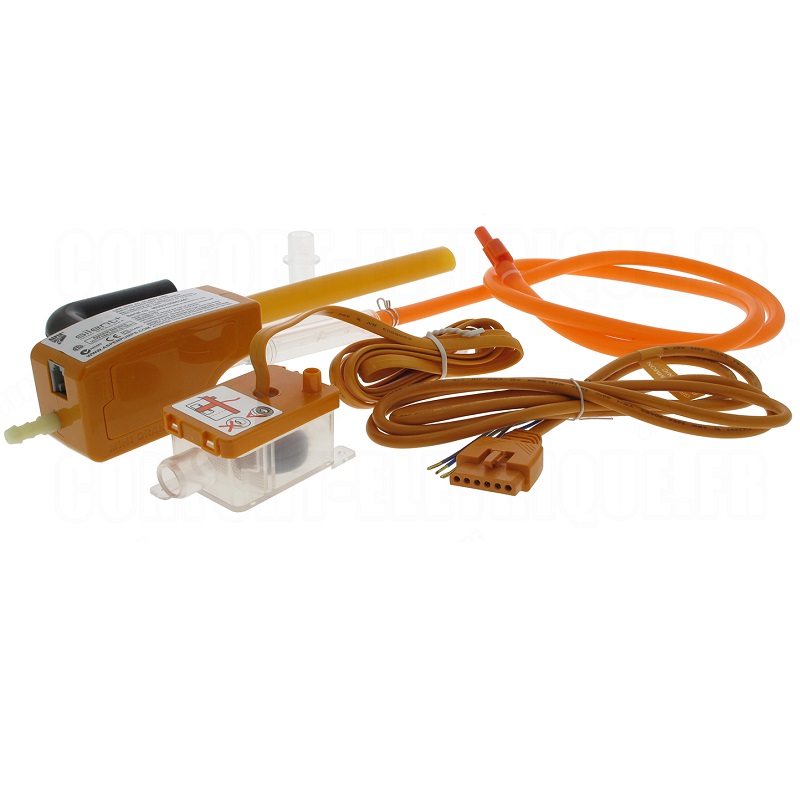

Mini Orange Silence+ pump, 1.5 m power cable, sound absorber and 1 m orange drain hose with connector, anti-vibration bracket, tank, tank cover with 1.5 m sensor cable, submersible tank, anti-siphon, float and filter, 1.5 m suction hose, diam. int. 6 mm, orange flexible hose 220 mm, diam. int. 14 mm, 150 mm vinyl vent tube, diam. int. 6 mm, drain connection assembly, fixing assembly, installation instructions
