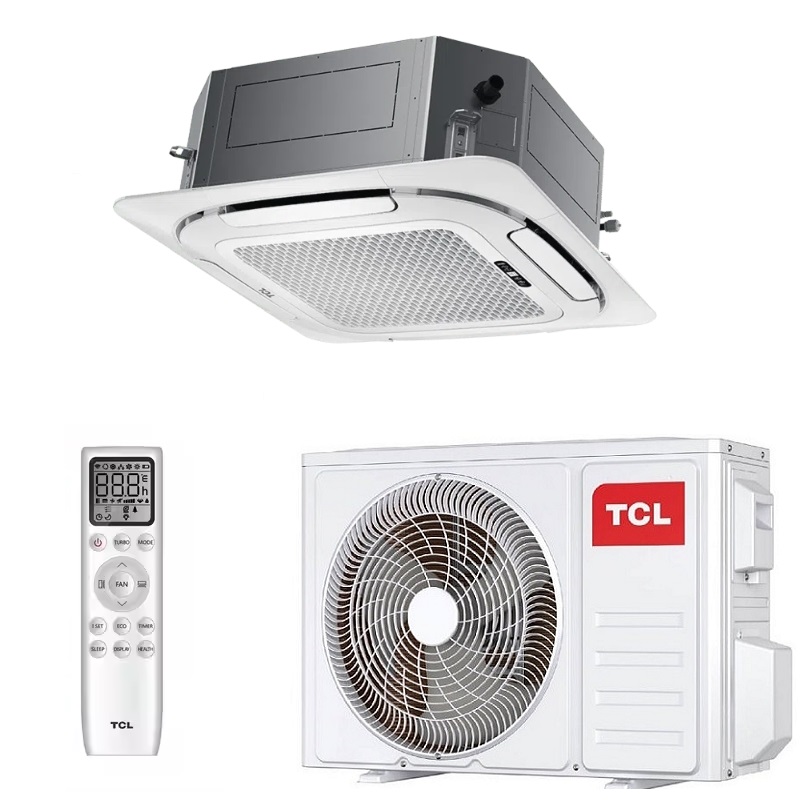

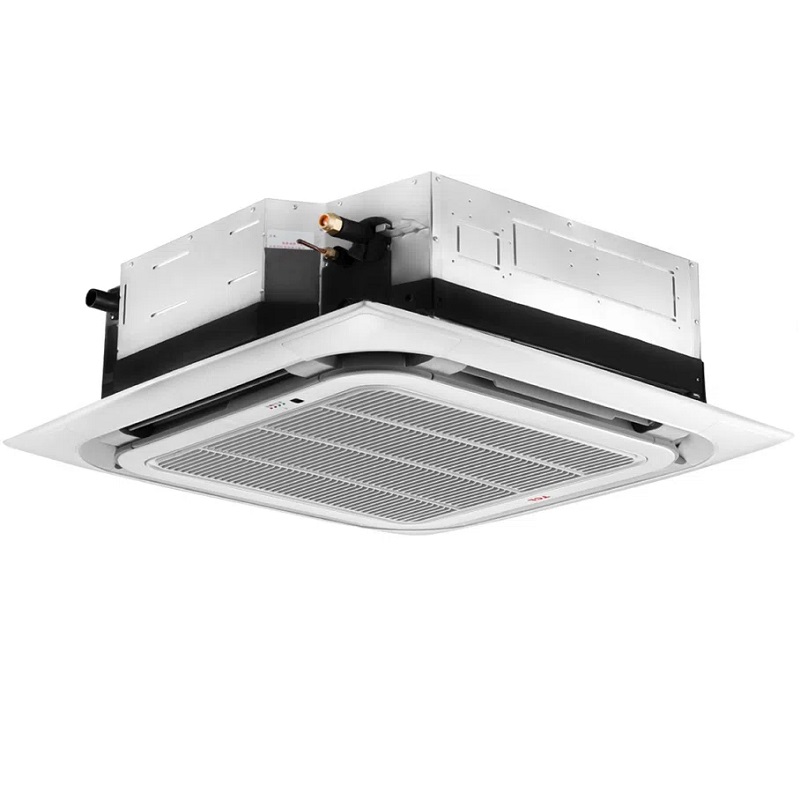

M24S1S1 Cassette Air Conditioner, 7.0 kW
Declared Cooling Capacity (W): 2700 (560~3350)
Declared Heating Capacity (W); 2800 (560~3380)
Energy Class: A++
Average Pdesignh (W): 2300
Average declared SCOP (W/W): 4
Energy Class (average): A+
Annual energy consumption for air conditioning (kWh/a): 135
Average annual energy consumption (kWh/a): 851
Dehumidification (liters/h): 1.5
Indoor sound power level (S/H/M/G/Silent) (dB(A)): 52/50/46/40/37
Indoor sound power level (standard rated conditions) (dB(A): 52
Outdoor sound power level (standard rated conditions) (dB(A): 62
Power Supply: 230 V/50 Hz/1P
Power Supply Side: Outdoor
Voltage Range (V): 165~265
Current Outdoor Cooling Operation Current (A): 4.0 (1.2~8.0)
Outdoor Heating Operation Current (A): 3.1 (1.2~8.0)
Outdoor Cooling Power Consumption (W): 660 (150~1600)
Outdoor Heating Power Consumption (W): 650 (150~1600)
Refrigerant Type/Charge/GWP/CO2 Equivalent: R32/0.53 kg/675/0.358
Compressor: Rotary
Indoor Air Circulation for Cooling/Heating (m3/h): 550
Outdoor Air Circulation (m3/h): 1900
Outdoor Static Pressure (Nominal) (Pa): 3/8"
Liquid Connection Pipe (inch): 1/4"
Application Area (m²): 9~16
Max. Length refrigerant pipe length (m): 25
Max. length Elevation (m): 10
Operating Temperature Range (°C): 16-31
Indoor Ambient Temperature Range (°C)
Cooling: 17-32 / Heating: 0-30
Outdoor Ambient Temperature Range (°C)
Cooling: -15-53 / Heating: -20-30
Indoor Gross Weight (kg): 18
Outdoor Gross Weight (kg): 24
Panel Gross Weight (kg): 4.25
Indoor Net Dimensions (W x H x D) (mm): 570 × 245 × 570 (without panel)
Outdoor Net Dimensions (W x H x D) (mm): 777 × 498 × 290
Panel Net Dimensions (W x H x D) (mm): 650 × 57 × 650
Indoor Net Weight (kg): 14.5
External net weight (kg): 22
Panel net weight (kg): 2.7
Internal dimensions (packaging) (mm): 718 × 301 × 657
External dimensions (packaging) (mm) 818 × 515 × 325
Panel dimensions (packaging) (W x H x D) (mm): 733 × 105 × 733
