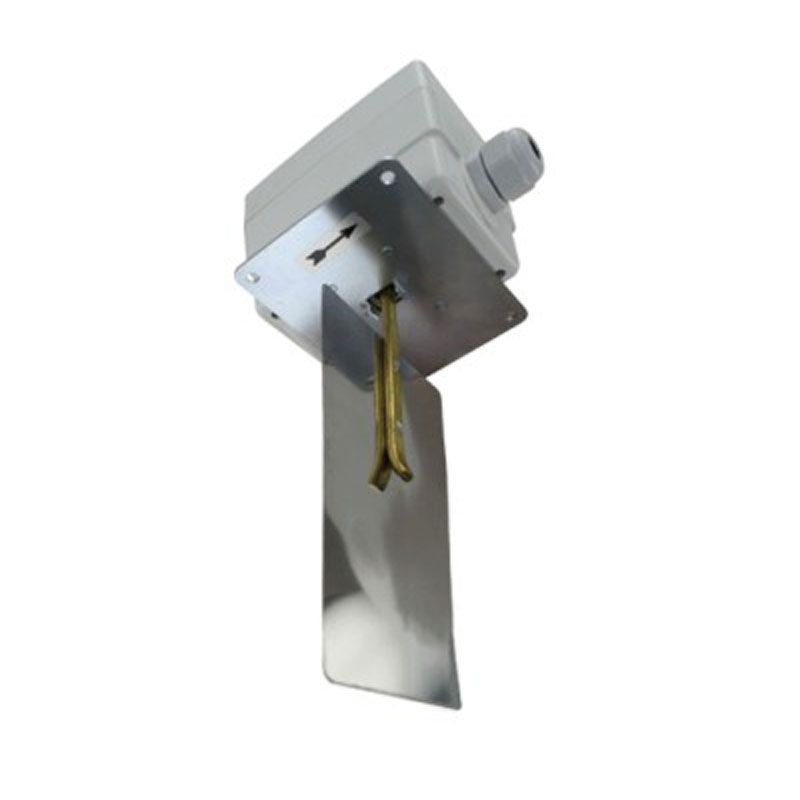

Air flow switch 1-9.2 mbar (for industrial hoods)
Control and monitoring of the flow of non-aggressive air and gases in ducts, chambers, etc., of heating, refrigeration and air conditioning equipment
Action Type: On/Off, Single Stage, Microswitch
Output: SPDT, 24/250 VAC, 15(8)A
Connection speed: Min. 1.0m/sec, Max. 8.0 m/s
Disconnect flow: Min. 2.5m/sec, Max. 9.2m/sec
Sensor element: Shovel
Shovel size: 53.2 × 6.9 inches (80x175 mm)
Level Mounted Shovel Size: 7.9 inches (200 mm)
Shovel material: stainless steel.
Base mounting material: Galvanized steel
Housing material: white ABS, self-extinguishing or PC, IP65
Operating temperature in box: -40°C…85°C (-40°F…185°F)
Working temperature on the blade: -10°C…85°C (14°F…185°F)
Ambient working humidity: 10…90% RH, non-condensing
Cable entry: M18 cable gland
Gross weight: 485g.
