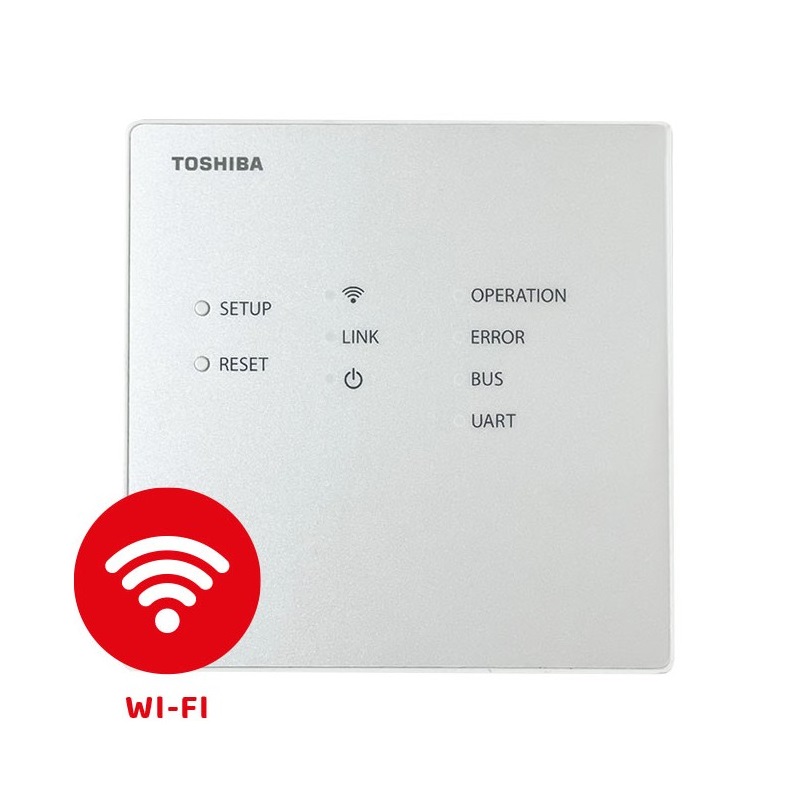

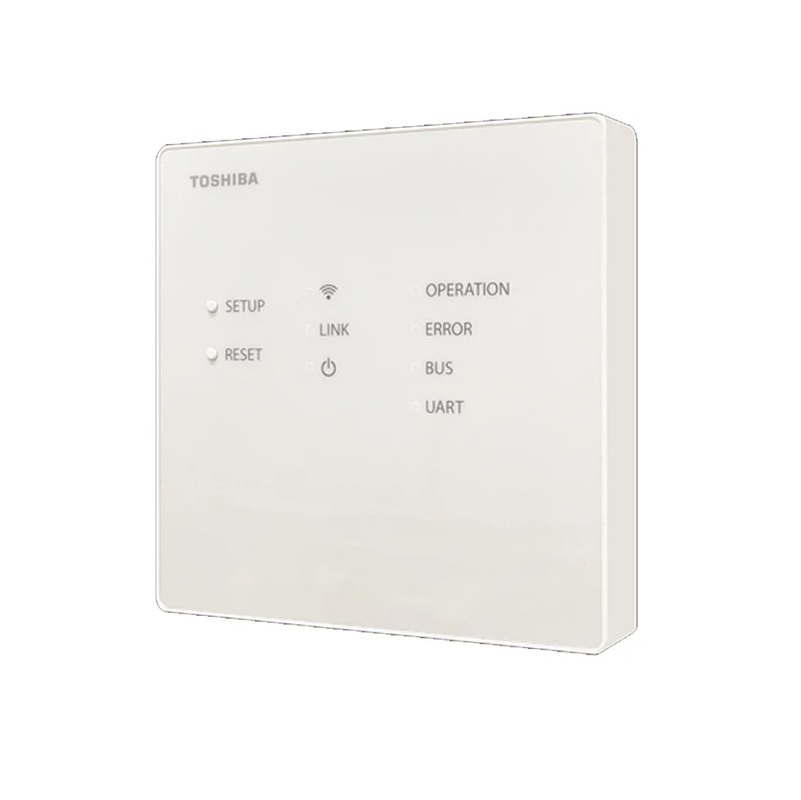

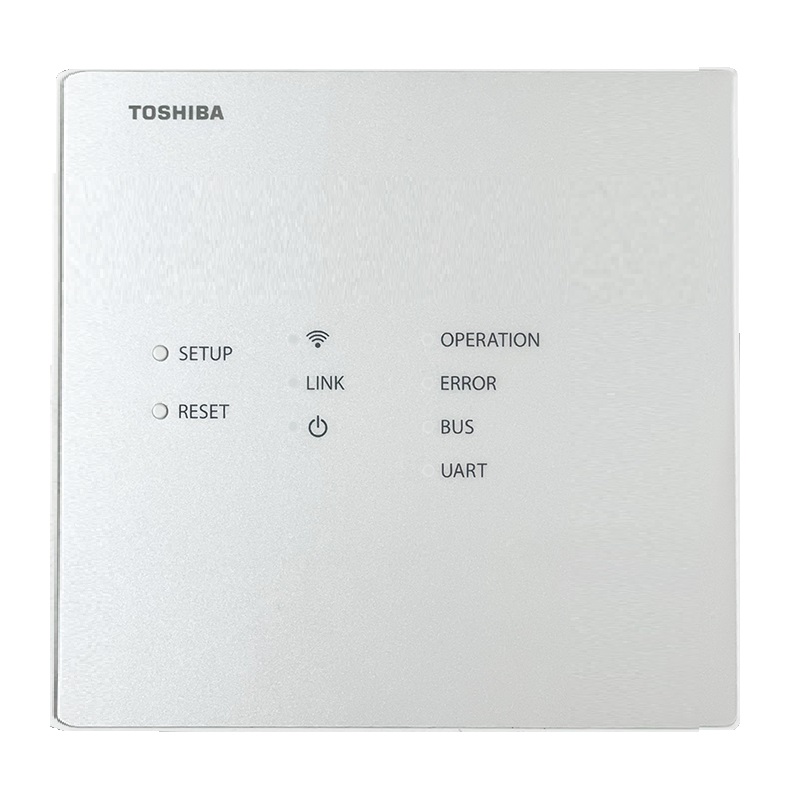

Toshiba BMS-IWF0010UCP-E Wi-Fi Adapter

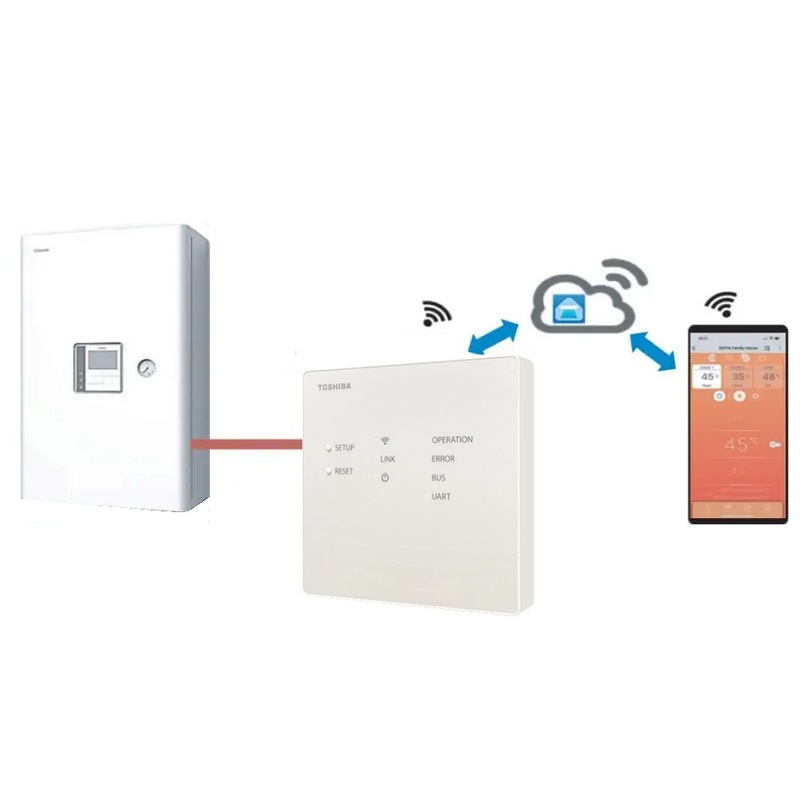

This interface allows you to remotely control your air conditioning units using the Toshiba Home AC Control app via a smartphone or tablet. It offers the user complete control of their units, whether at home or away, whenever they want (On/Off).
This interface works with Amazon Alexa and Google Assistant voice assistants.
Up to 16 indoor units can be controlled per user via the app.
Operating Mode
Set Temperature
Fan Speed
Sweep Mode
Weekly Programming
Silent Mode
Eco Mode - Frost Protection
Consumption Monitoring
Error Code Viewing
Zone Creation
Demonstration Mode
Exclusively compatible with the RAV-RM/GM/HM
MMx-UP
BMS-IWF0010UCP-E
Maximum AC, 50 meters
Operating Temperature: 0-50°C
Power Input: From the AC FCU via the AB line
Power Consumption: 0.6 W (Flame Retardant Grade: UL94-HB)
Wi-Fi Bands: 2.4 GHz
Radio Protocol: IEEE 802.11b/g/n
Dimensions (WxDxH): 28 x 120 x 120 mm
Net Weight: 0.13 kg
