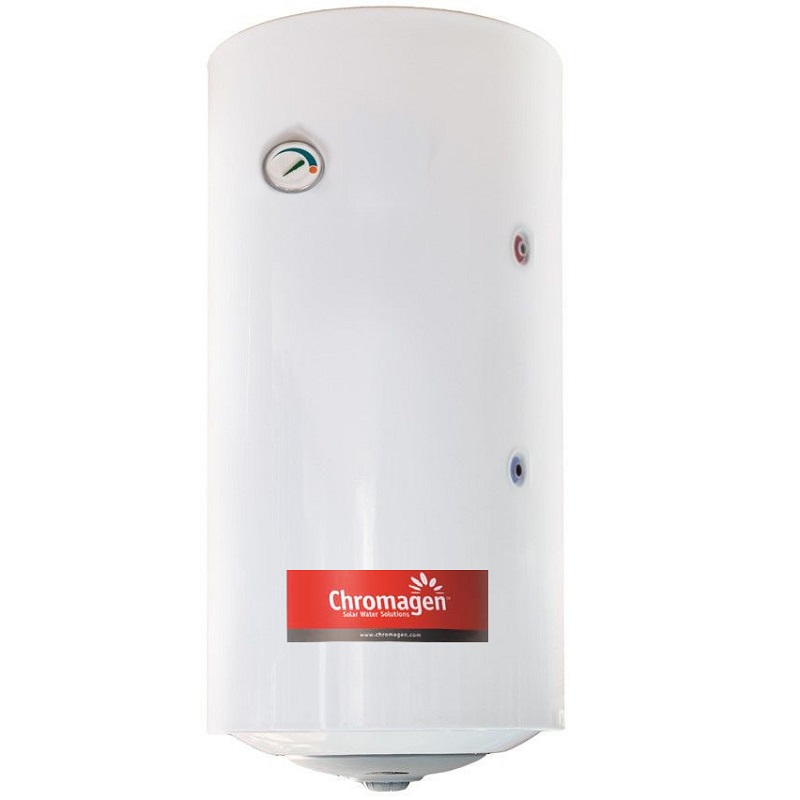

Accumulator Chromagen 150 VTD 150 liters

Accumulator Chromagen 150 VTD 150 liters

Chromagen offers us the floor accumulator, a product capable of storing hot water in its tank. The accumulator is made of steel with a vitrified enamel treatment, which makes it an ideal product for DHW installations.

This model has a double jacket exchanger, where the primary circuit surrounds the secondary circuit, the exchange being made through the contact surface, these types of exchangers are those that offer the best performance for solar installations.
The maximum operating temperature is 95ºC and the maximum pressure is 3 bars in double jacket.

Accumulators are devices designed to accumulate hot water for sanitary use. For proper operation, the accumulators must be connected to an external heat source (solar panel, boiler, heating ...).
The operation of this type of accumulator is very simple, because thanks to the double jacket exchanger that it incorporates, the hot water generated by the external heat source manages to heat the water inside the tank.

Components Storage tank
Connections: Cold water inlet from the network: 1/2 "M
Domestic hot water outlet to the consumer: 1/2 "M
Heat exchanger inlet: 3/4 "M
Heat exchanger outlet: 3/4 "M
Features: Capacity (L) 150
Mounting Wall/Vertical
Circuit type: Indirect
Heat exchanger: Coil
Internal treatment: Vitreous enamel
External treatment: White galvanized steel
Polyurethane insulation: Rigid injected
Cathodic protection: Magnesium anode
Capacity: 150 liters
Polyurethane insulation
Maximum working temperature: 60 °C
Dimensions: (H x W) 470 x 1.150 mm
Weight: 26.7 kg
